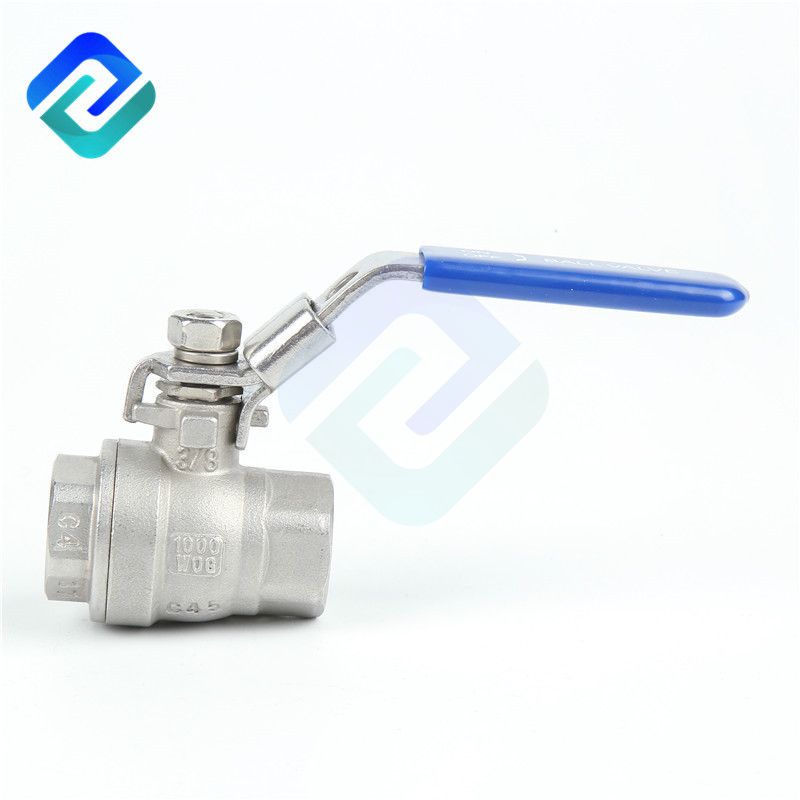

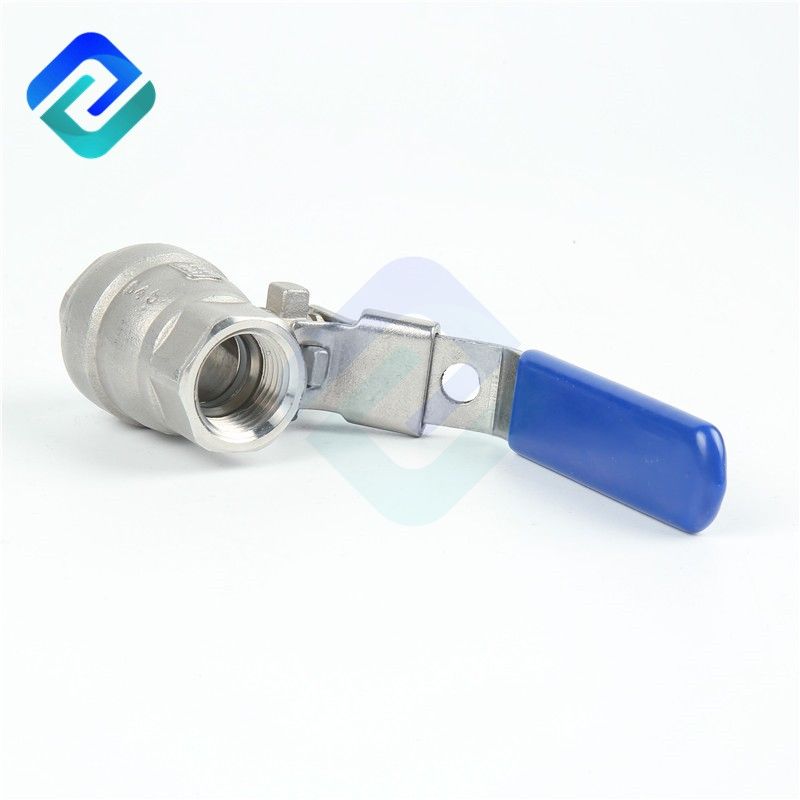

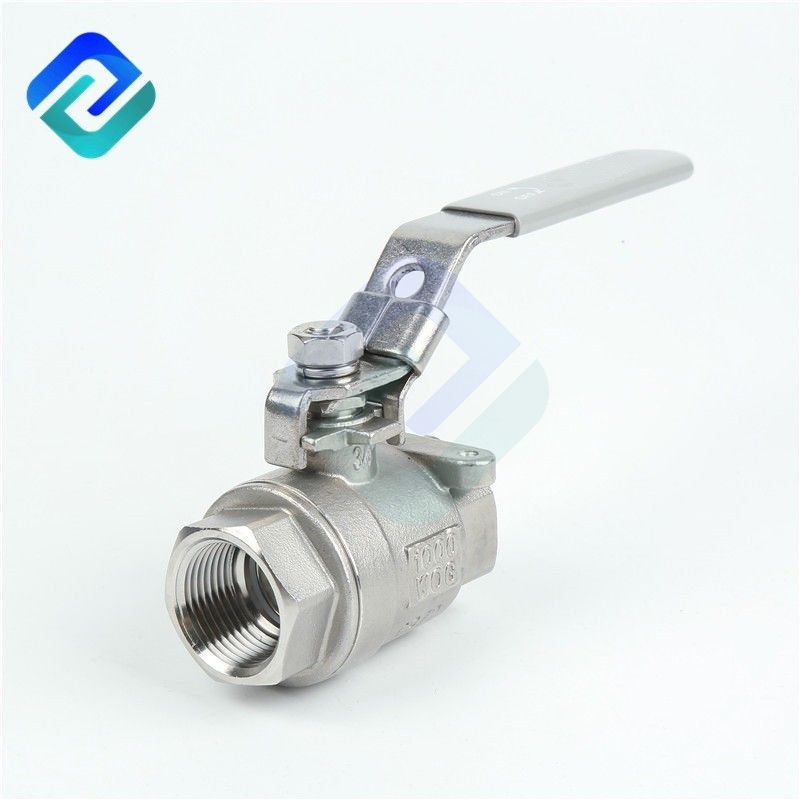

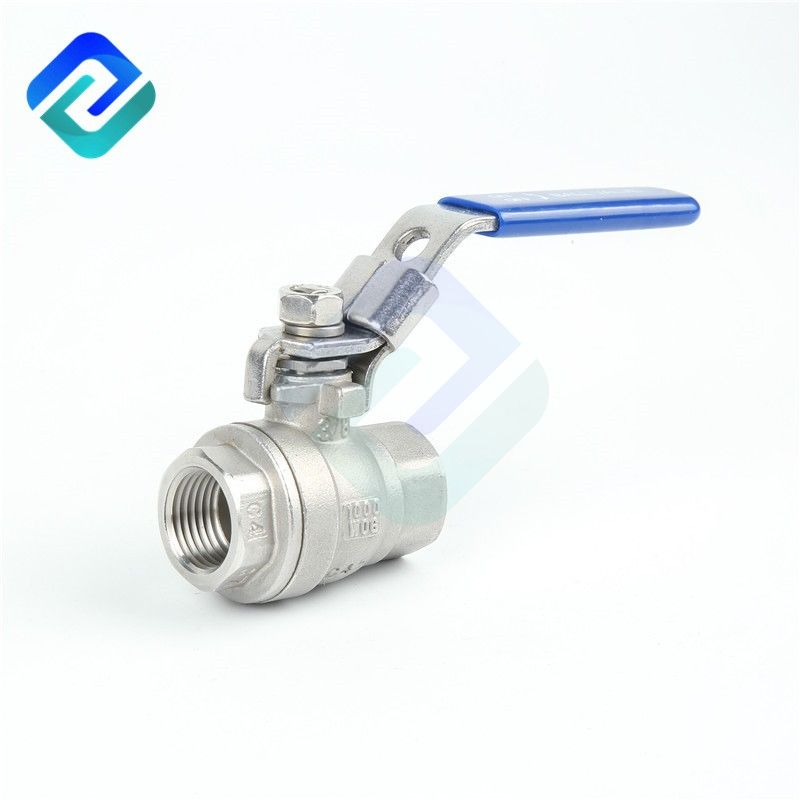

A 2-pc ball valve is a type of valve that consists of two main components: the body and the ball with associated stem and seals. The body is usually made up of two separate pieces that are bolted or threaded together, hence the name "two-piece" ball valve.
The ball in a 2-pc ball valve is a hollow, perforated sphere with a hole or port through its center. It is connected to a stem that extends outside the valve body. When the valve is in the open position, the port in the ball aligns with the flow path, allowing the fluid or gas to pass through. Turning the handle or lever connected to the stem rotates the ball 90 degrees, closing the valve and blocking the flow.
The two-piece design of this valve allows for easy installation and maintenance. The two body pieces can be separated, providing access to the internal components for inspection, repair, or replacement without removing the entire valve from the pipeline.
2 Piece ball valves are commonly made of metal, such as stainless steel or brass, which provides durability and resistance to corrosion. They are suitable for a wide range of applications in industries such as oil and gas, petrochemicals, water treatment, and HVAC systems.
In summary, a 2-pc ball valves are a versatile valve option with a body composed of two separate pieces. It offers easy installation, maintenance, and reliable flow control in various industrial and commercial applications.
Cencho supplies high quality 2-pc ball valves, our ball valves are sold to 17 countries around the world, we can accept customization, if you have any questions, please contact us.
What is the advantage of 2 piece ball valve?
1. Easy Installation and Maintenance: The two-piece design allows for easy installation and maintenance. This simplifies maintenance procedures and reduces downtime.
2. Versatility: Two-piece ball valves are versatile and suitable for a wide range of applications. They can handle various fluids and gases, including corrosive and high-temperature substances.
3. Strong and Durable: 2 pc ball valves are typically made of sturdy and durable materials such as stainless steel or brass. This construction ensures excellent resistance to corrosion, wear, and high-pressure environments. They can withstand demanding operating conditions and have a long service life.
4. Reliable Sealing: The design of a 2-piece ball valve provides reliable sealing. When the valve is closed, the ball rotates to block the flow path completely, preventing any leakage.
5. Precise Flow Control: Two piece ball valves offer precise flow control. The quarter-turn operation of the handle or lever provides quick and efficient on/off control, allowing for precise regulation of the flow rate.
6. Cost-Effective: 2-pc ball valves are generally cost-effective compared to other types of valves. Their simple design and ease of manufacture contribute to their affordability. Additionally, their durability and low maintenance requirements result in reduced operating costs over time.
What is the difference between a 2pc and 3pc ball valve?
The main differences between a 2 pc (two-piece) and 3 pc (three-piece) ball valve are the construction and assembly method, maintenance and repair procedures, flexibility for customization, construction integrity, and cost.
1. Construction: In a two piece ball valve, the valve body is composed of two main pieces that are bolted or threaded together. These two pieces encapsulate the ball, stem, and seals, forming a compact unit. In contrast, a three-piece ball valve consists of three separate body pieces: a center section and two end caps. The center section houses the ball and stem, while the end caps are connected to the center section through bolts or screws.
2. Maintenance and Repair: Two-piece ball valves are easier to install and maintain compared to three-piece ball valves. The two-piece design allows for simple disassembly and reassembly of the valve by removing the bolts or threads connecting the body pieces. This ease of maintenance facilitates inspection, cleaning, and repair. On the other hand, three-piece ball valves require complete removal of the bolts or screws connecting the end caps to access the internals for maintenance or repair.
3. Flexibility: 2-pc ball valves offer greater flexibility in terms of customization and modification. Since the valve body is composed of three separate pieces, it is possible to replace or modify specific components without replacing the entire valve. This can be advantageous when there is a need to change certain parts or adapt the valve to different specifications or applications. 2-piece ball valves, in contrast, are more compact and have limited options for modification.
4. Construction Integrity: 2 pc ball valves provide enhanced construction integrity compared to two-piece ball valves. The additional end caps in a three-piece design add extra reinforcement and structural stability to the valve body. This can be particularly beneficial in high-pressure applications, where the valve body needs to withstand significant forces.
5. Cost: Generally, 2-pc ball valve is more cost-effective compared to three-piece ball valves. The simpler construction of two-piece ball valves reduces manufacturing complexity and material requirements, resulting in a lower overall cost. Three-piece ball valves, with their additional components and potentially higher customization options, tend to be slightly more expensive.
