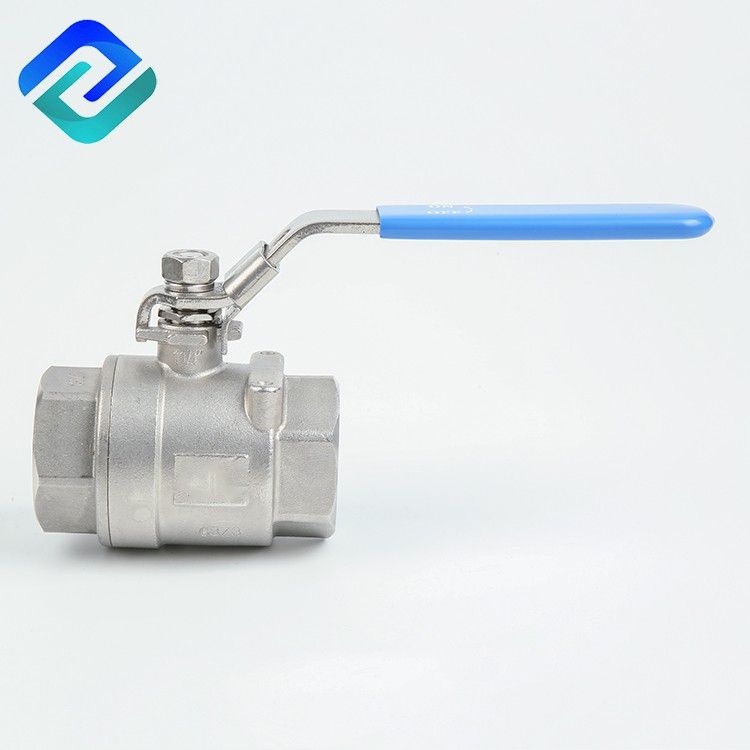

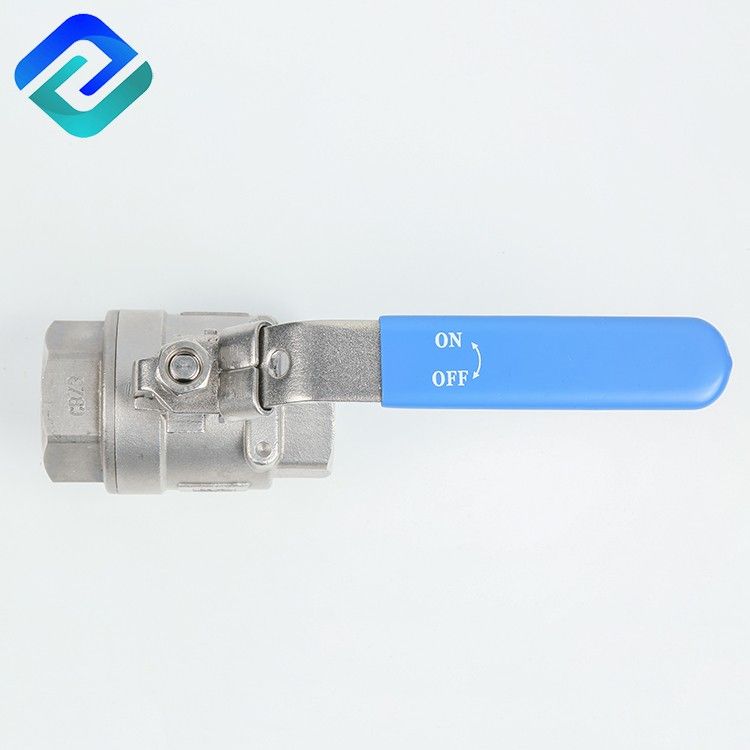

304/316 2pc stainless steel ball valve manufacturer
Size: 1/4''~4''
Material: SS304/SS316
Products Description
When it comes to industrial flow control, stainless steel ball valves are among the most popular choices due to their durability, reliability, and versatility. Specifically, 304 and 316 stainless steel 2-piece ball valves are essential components in various applications.
A 2-piece ball valve consists of two main body components that are bolted together, encasing a spherical ball with a hole through the center. This ball acts as the valve closure element. When the valve is open, the hole aligns with the flow direction, allowing liquids or gases to pass through. When closed, the ball rotates, blocking the flow.
The 2-piece stainless steel ball valve is probably the most widely used. Flow rate can also be controlled by partially opening or closing the valve to various degrees. The 2 piece ball valve will open or shut off the flow of most liquids and gases quickly and easily and is suitable for just about any application where a simple on/off action is needed. The two-piece ball valve is the best priced full port ball valve (full bore), allowing the inside diameter of the pipe to remain constant and unrestricted. This means that the 2-piece SS ball valve has no pressure drop and keeps the flow rate high. They are referred to as a two-way ball valve since it allows flow in any direction straight through from the inlet to the outlet. Being threaded ball valves they are quick to install and easy to use, requiring no tooling for installation.
304 Stainless Steel: Known for its excellent corrosion resistance in many environments, making it suitable for a wide range of applications.
316 Stainless Steel: Offers superior corrosion resistance, particularly against chlorides and harsh chemicals. This makes it ideal for marine and chemical processing applications.
Precision casting two-piece ball valve (full port)
Pressure rating: 1000PSI (PN63)
Thread standard: ANSI B2.1, BS 21, ISO7/1
Working temperature: -25℃+180℃
Material: CF8M, CF8, CF3M, WCB
Sizes Start from 1/4" up to 4"
Durability: Both 304 and 316 stainless steel are resistant to rust and corrosion, ensuring long-term reliability even in harsh environments.
Ease of Maintenance: The 2-piece design allows for straightforward disassembly, cleaning, and repair.
Versatility: These valves are suitable for various applications, including water, gas, oil, and even aggressive chemicals, depending on the material chosen.
Cost-Effective: While they may have a higher upfront cost compared to other materials, their longevity and reduced maintenance needs make them a cost-effective choice in the long run.
PTFE Seal and Seat Good for Chemical and High Heat Applications
● Chemical Processing: 316 stainless steel valves are often used in chemical plants due to their resistance to corrosion from aggressive chemicals.
● Food and Beverage: Both 304 and 316 valves are used in food processing due to their sanitary properties and resistance to rust.
● Water Treatment: Ideal for controlling flow in various water treatment processes.
● Oil and Gas: Essential in various applications, from upstream drilling to downstream processing.
MATERIAL LIST of 304/316 2pc stainless steel ball valve manufacturer:
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
2 | SEAT | PTFE/RPTFE | 2 | ||
3 | BALL | 304 | 304 | 316 | 1 |
4 | GASKET | PTFE | 1 | ||
5 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 |
6 | STEM | 304 | 304 | 316 | 1 |
7 | THRUST WASHER | PTFE | 1 | ||
8 | PACKING | PTFE | 1 | ||
9 | GLAND NUT | 304 | 304 | 304 | 1 |
10 | HANDLE | 304 | 304 | 304 | 1 |
11 | SPRING WASHER | 304 | 304 | 304 | 1 |
12 | NUT | 304 | 304 | 304 | 1 |
13 | LOCK | 304 | 304 | 304 | 1 |
14 | HANDLE COVER | PLASTIC | 1 | ||
DIMENSION TABLE of 304/316 2pc stainless steel ball valve manufacturer
SIZE | Φ d | L | H | W | N.M | KGS | |
DN6 | 1/4” | 12.5 | 50 | 49 | 106 | 4 | 0.19 |
DN10 | 3/8” | 12.5 | 50 | 49 | 106 | 4 | 0.19 |
DN15 | 1/2” | 15 | 53 | 52 | 106 | 5 | 0.25 |
DN20 | 3/4” | 20 | 66 | 58 | 116 | 8 | 0.37 |
DN25 | 1” | 25 | 73 | 73 | 148 | 10 | 0.58 |
DN32 | 1-1/4” | 32 | 85 | 79 | 148 | 10 | 0.90 |
DN40 | 1-1/2” | 38 | 94 | 84 | 182 | 25 | 1.19 |
DN50 | 2” | 50 | 112 | 95 | 182 | 40 | 1.73 |
DN65 | 2-1/2” | 65 | 147 | 127 | 251 | 48 | 3.84 |
DN80 | 3” | 76 | 172 | 136 | 251 | 80 | 5.71 |
DN100 | 4” | 94 | 222 | 158 | 283 | 103 | 10.70 |

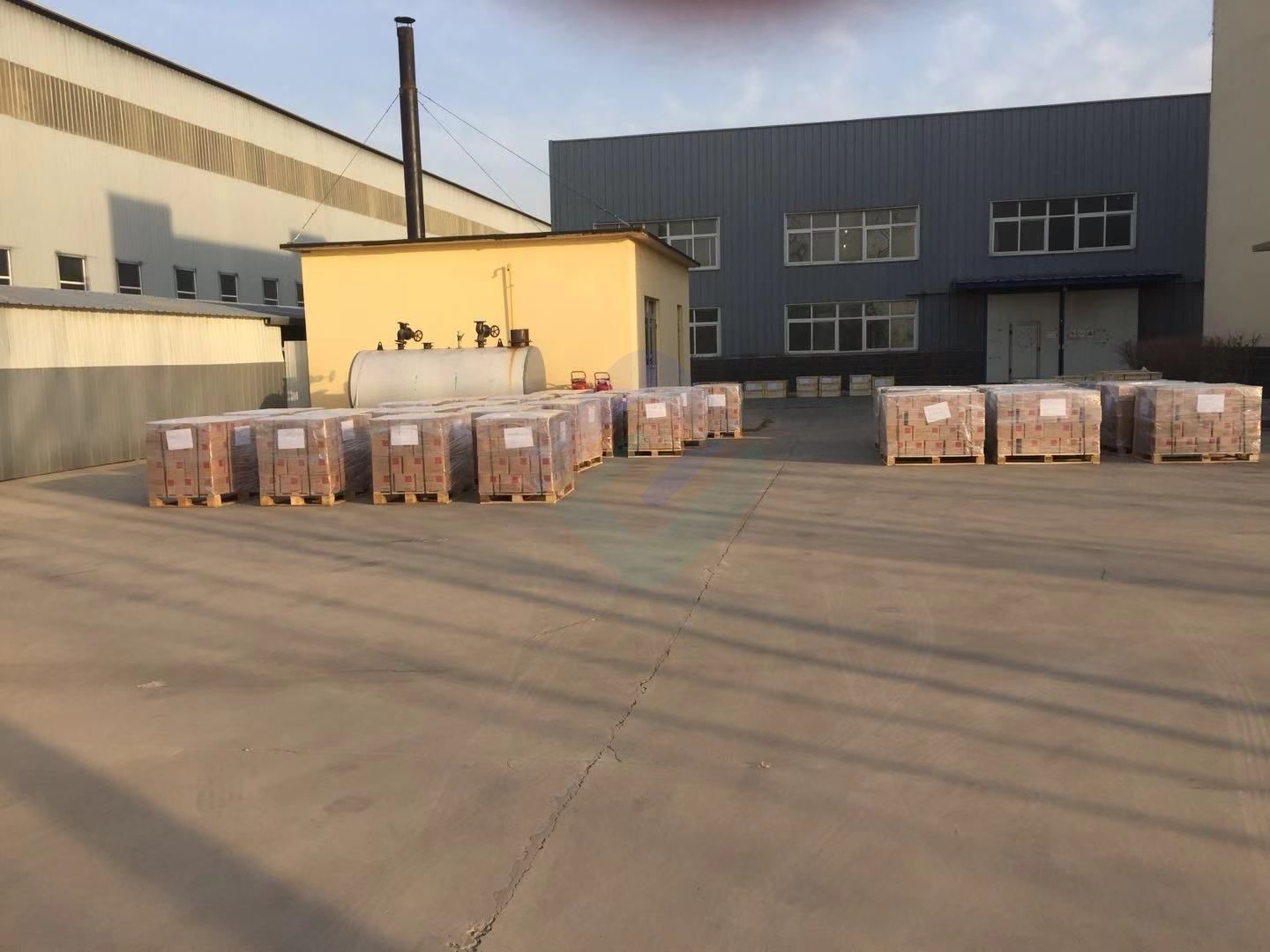

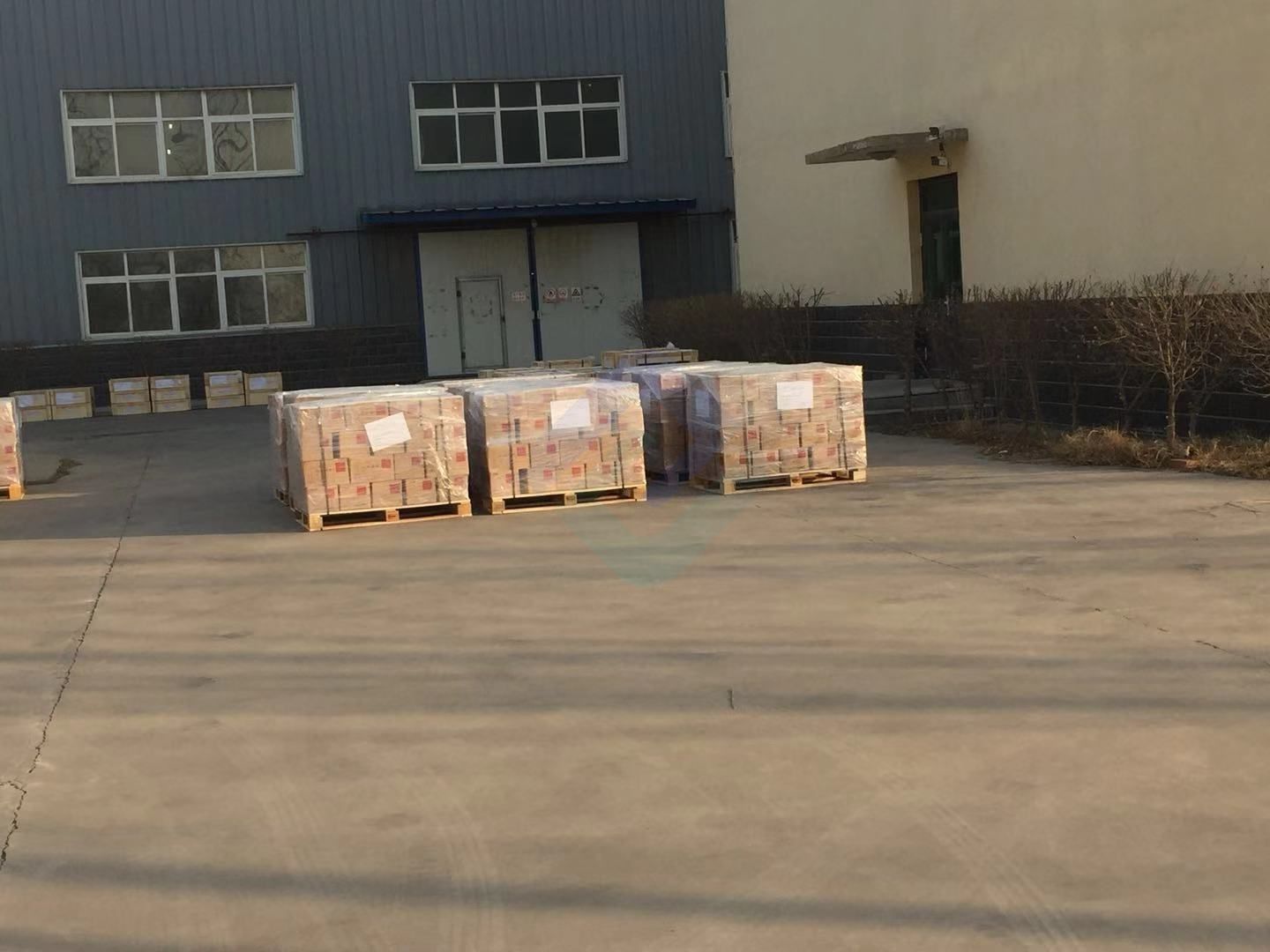

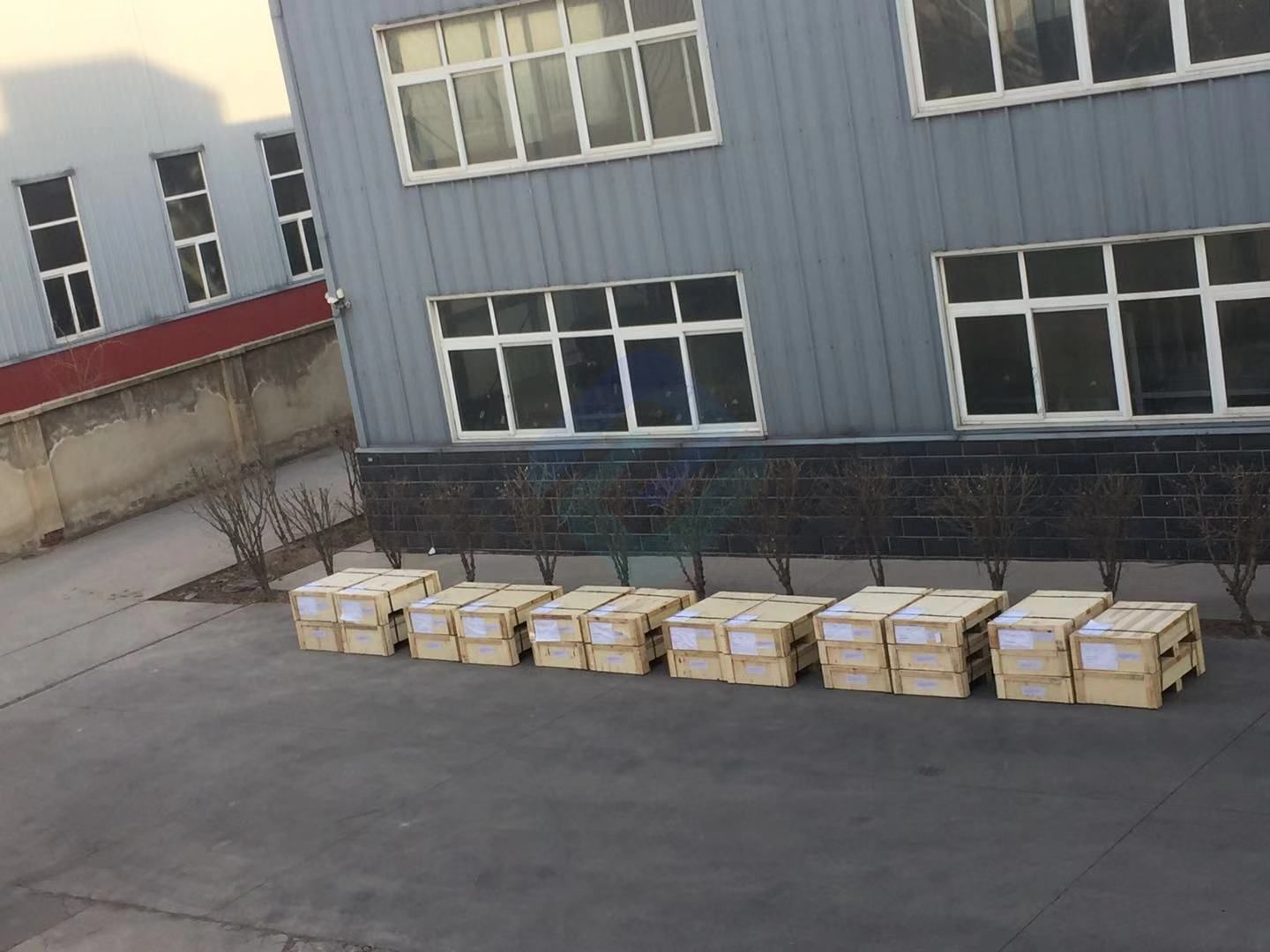

Package and delivery:
Our Customers:
FAQ:
Q1: We are interested in your products.
A1: In order to recommend suitable products, please provide detailed information, like size, material, pressure, and model.
Q2: Is the requirement for MOQ?
A2: For some small sizes, like 1/4''-1''(DN6-DN25), it requests the MOQ is 50pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against a copy of BL.
Q5: Can you manufacture different standard valves according to customer requirements?
A5: Yes. We can manufacture API, DIN, GOST, and JIS standards for different pressures & temperatures & sizes according to different needs.
304 and 316 2-piece stainless steel ball valves are indispensable in various industries due to their durability, reliability, and ease of use. If you want to know more about our products, please contact us. We will patiently answer all your questions.
