Stainless steel ball valves in China have seen significant advancements and growth, positioning the country as a key global player in the valve manufacturing industry. Chinese manufacturers have increasingly focused on quality, innovation, and compliance with international standards such as ISO, API, and CE. The industry benefits from advanced manufacturing technologies and stringent quality control processes, ensuring the high reliability and durability of their products. These valves are widely used across various sectors, including oil and gas, chemical processing, water treatment, and food and beverage industries, both domestically and internationally. Leading Chinese companies, such as Cencho, are recognized for their comprehensive product ranges and competitive pricing. As a result, China's market for stainless steel ball valves continues to expand, driven by both robust domestic demand and growing export markets.
A stainless steel ball valve is a highly durable and versatile type of valve used to control the flow of liquids and gases. It consists of a spherical disc (the ball) with a hole through the center. When the valve is open, the hole aligns with the flow path, allowing fluids to pass through. When closed, the ball is rotated 90 degrees to block the flow.
Products Description
Stainless steel ball valves are essential components in numerous industrial, commercial, and residential applications. With advancements in manufacturing and a focus on quality, Chinese manufacturers have become prominent suppliers of these reliable and durable valves. These valves provide excellent corrosion resistance, ease of use, and versatility, making them a preferred choice in various sectors worldwide.
Material: Typically made from stainless steel grades such as 304, 316, or 316L, which offer excellent corrosion resistance and durability.
Design: Ball valves have a spherical disc (ball) that controls the flow through the valve. When the valve is open, the hole through the ball aligns with the flow path, allowing fluid to pass through. When closed, the ball is rotated to block the flow.
Applications: 304/316 stainless steel 1 inch ball valve is widely used in industries such as oil and gas, chemical processing, water treatment, food and beverage, pharmaceuticals, and HVAC systems.
Advantages: Easy operation, reliable sealing, durability, and resistance to high pressure and temperature.
Size Range: Common sizes range from 1/4 inch to several inches, depending on the application.
Pressure Ratings: Ball valves can handle various pressure ratings, typically ranging from 150 psi to 3000 psi or higher.
End Connections: Available in threaded, flanged, or welded connections.

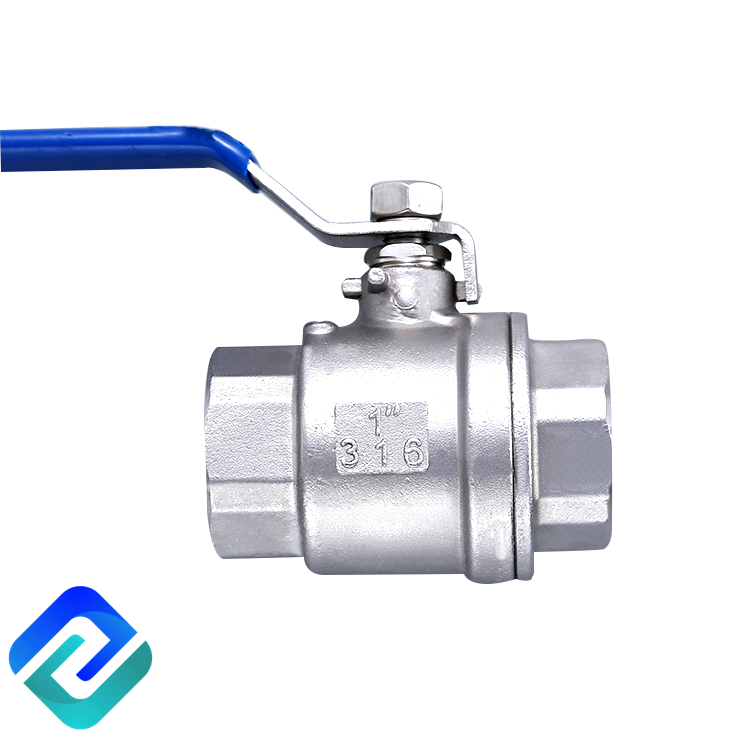

Product Name | 2 pc Stainless Steel Ball Valve |
Material | stainless steel |
Media | water, oil, gas |
Connection | Female Thread |
Temperature | Medium Temperature |
Lever /handle | Chroma Plating Steel |
Size | 1/2" to 4" |
Reply | within 12 hours |
OEM | Welcome |

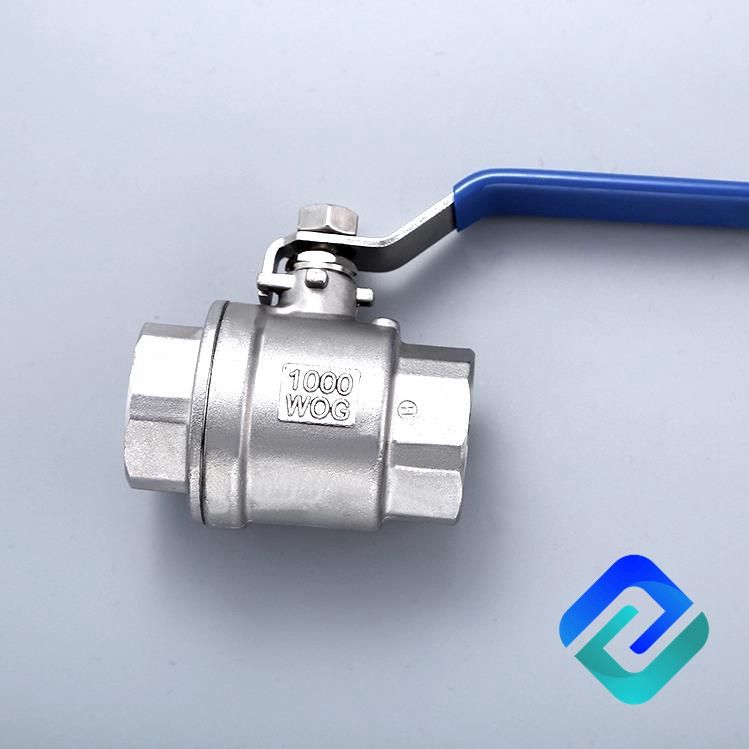

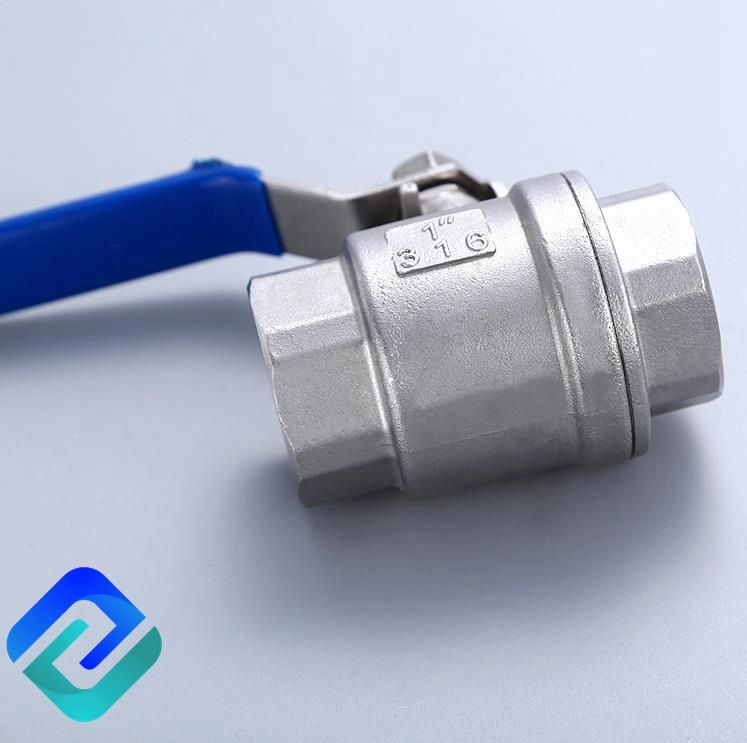

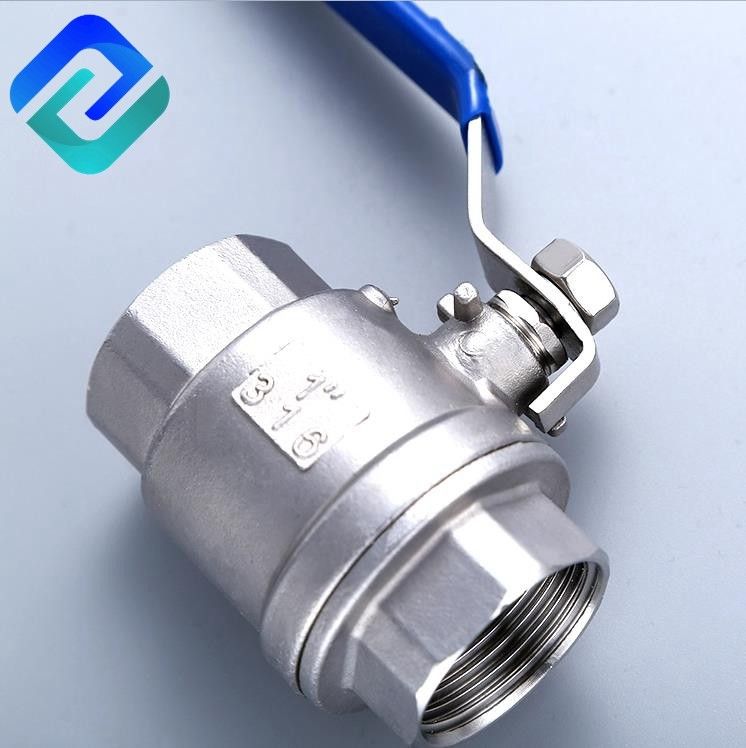

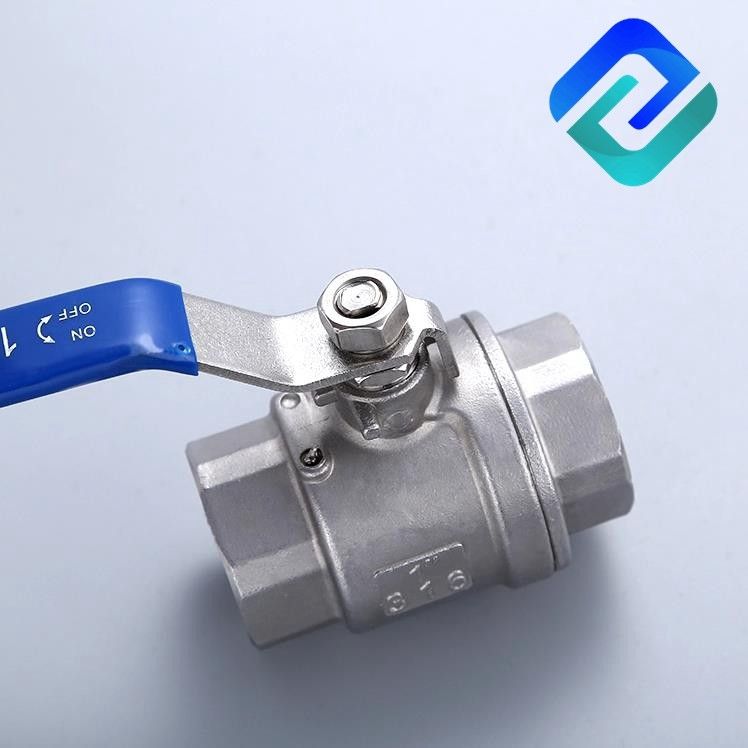

More pictures:

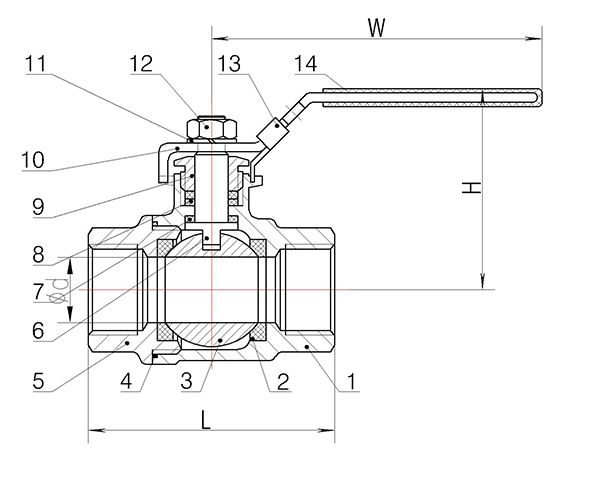

MATERIAL LIST
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
2 | SEAT | PTFE/RPTFE | 2 | ||
3 | BALL | 304 | 304 | 316 | 1 |
4 | GASKET | PTFE | 1 | ||
5 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 |
6 | STEM | 304 | 304 | 316 | 1 |
7 | THRUST WASHER | PTFE | 1 | ||
8 | PACKING | PTFE | 1 | ||
9 | GLAND NUT | 304 | 304 | 304 | 1 |
10 | HANDLE | 304 | 304 | 304 | 1 |
11 | SPRING WASHER | 304 | 304 | 304 | 1 |
12 | NUT | 304 | 304 | 304 | 1 |
13 | LOCK | 304 | 304 | 304 | 1 |
14 | HANDLE COVER | PLASTIC | 1 | ||
DIMENSION TABLE
SIZE | Φ d | L | H | W | N.M | KGS | |
DN6 | 1/4” | 12.5 | 50 | 49 | 106 | 4 | 0.19 |
DN10 | 3/8” | 12.5 | 50 | 49 | 106 | 4 | 0.19 |
DN15 | 1/2” | 15 | 56 | 52 | 106 | 5 | 0.27 |
DN20 | 3/4” | 20 | 66 | 57 | 115 | 8 | 0.40 |
DN25 | 1” | 25 | 80 | 73 | 148 | 10 | 0.67 |
DN32 | 1-1/4” | 32 | 91 | 79 | 148 | 14 | 1.00 |
DN40 | 1-1/2” | 38 | 99 | 84 | 182 | 24 | 1.28 |
DN50 | 2” | 50 | 122 | 97 | 182 | 40 | 2.08 |
DN65 | 2-1/2” | 65 | 147 | 127 | 251 | 48 | 3.84 |
DN80 | 3” | 76 | 172 | 136 | 251 | 80 | 5.71 |
DN100 | 4” | 94 | 222 | 158 | 283 | 103 | 10.70 |
Can be used for oil & petroleum, and water

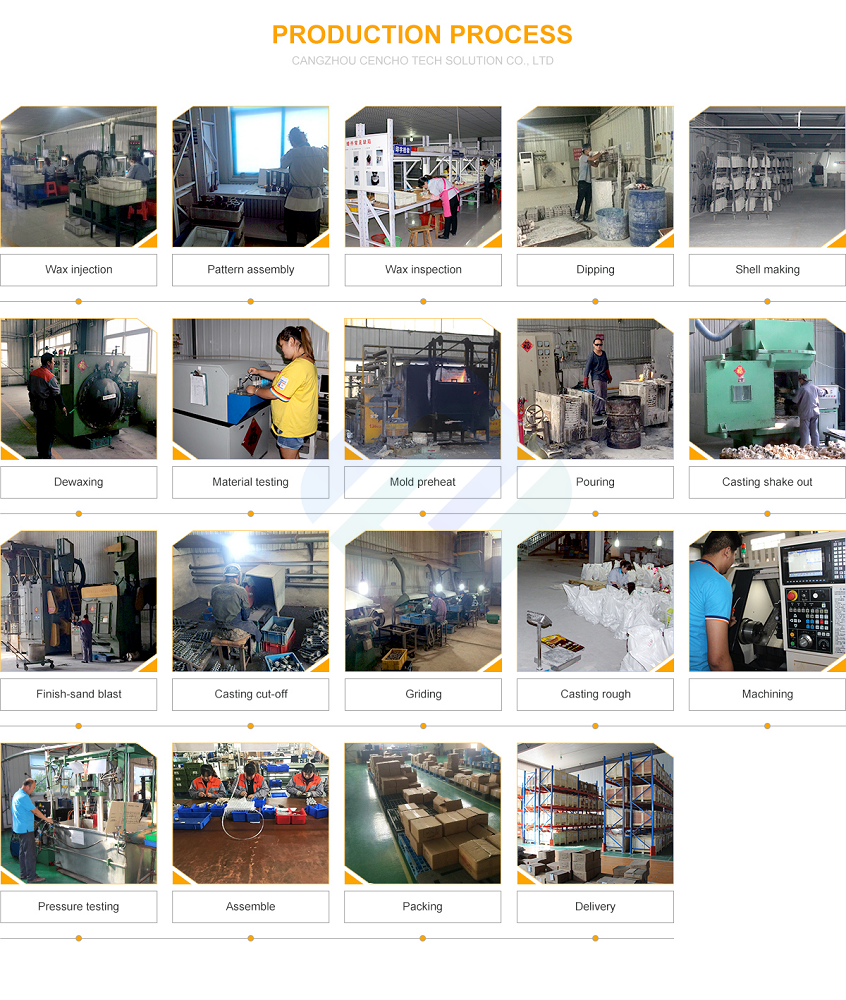

Production Process:

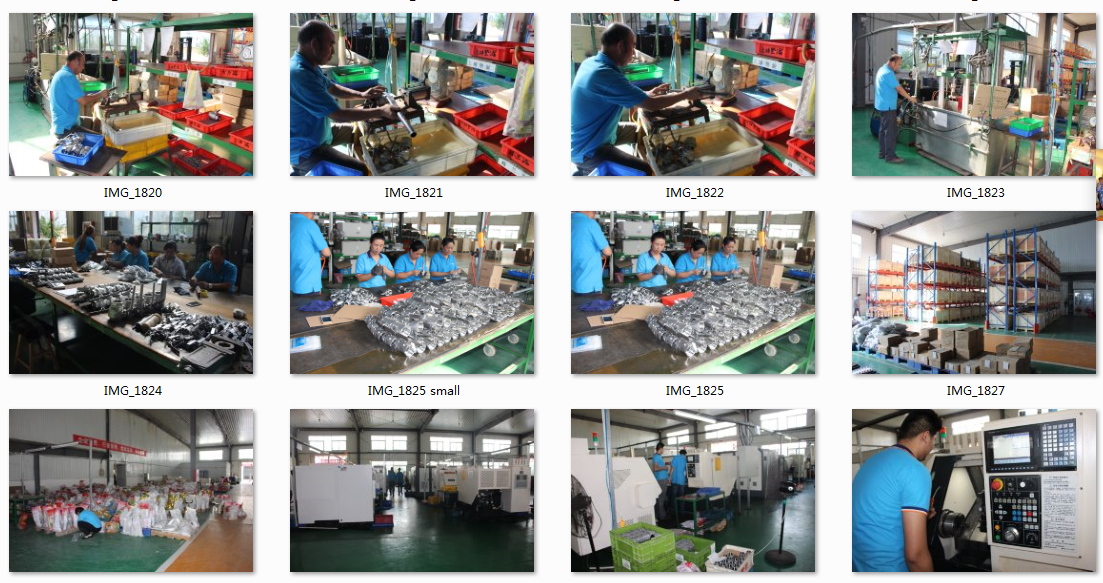

Our workshop:
