cf8m stainless steel high pressure full bore ball valve

Function description of Stainless steel ball valve:

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting
ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed
when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse.
These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Inquire Now Next Product

Products Description

Specification of Stainless steel ball valve

Material	SUS201, SUS304, SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc.
Size	1/4" -4" (DN6-DN100)
Pressure	1000psi
Temperature range	-20-300 degree C

connection	Thread or Weld
sealing	PTFE,RPTFE,PPL ETC
Production process	Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Certification	CE, ISO

Locking	With or without
Capacity to produce	100,00pcs/Month
Main products	Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc.

Application	Suitable for fire piping system, air, steam, water,gas, oil , home decoration , equipment and so on
	Buyer's drawing or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer's requirements

1)       Fast Material Supply.

2)       Every valve put through a six-step QC process before delivery.

Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.

3)       100% Leakage Test.

4)       Strictly and perfect management in production.

5)       Guaranteed Quality In Competitive Price.

6)       On-time Delivery.

7)       Complete R&D facilities and Excellent team.

8)       Annual R&D projects reach the number of 100.

9)       Have rich experience and strong ability to develop new product

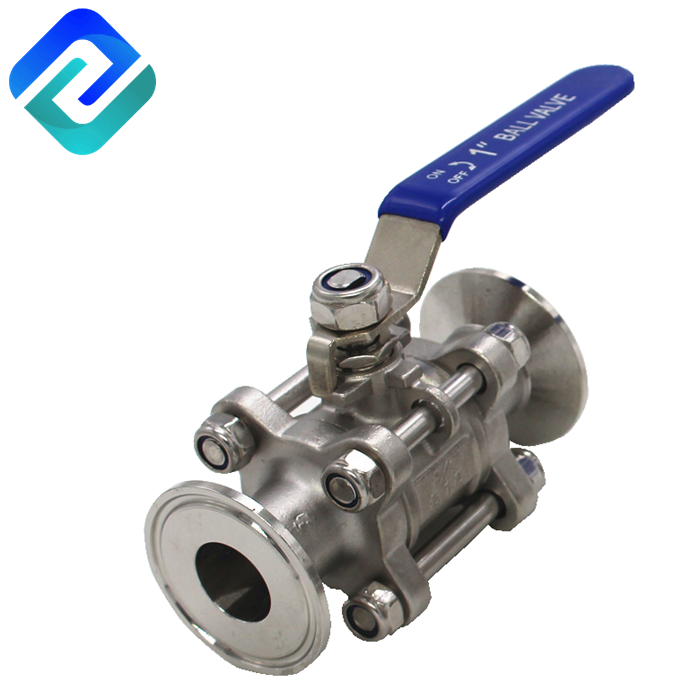

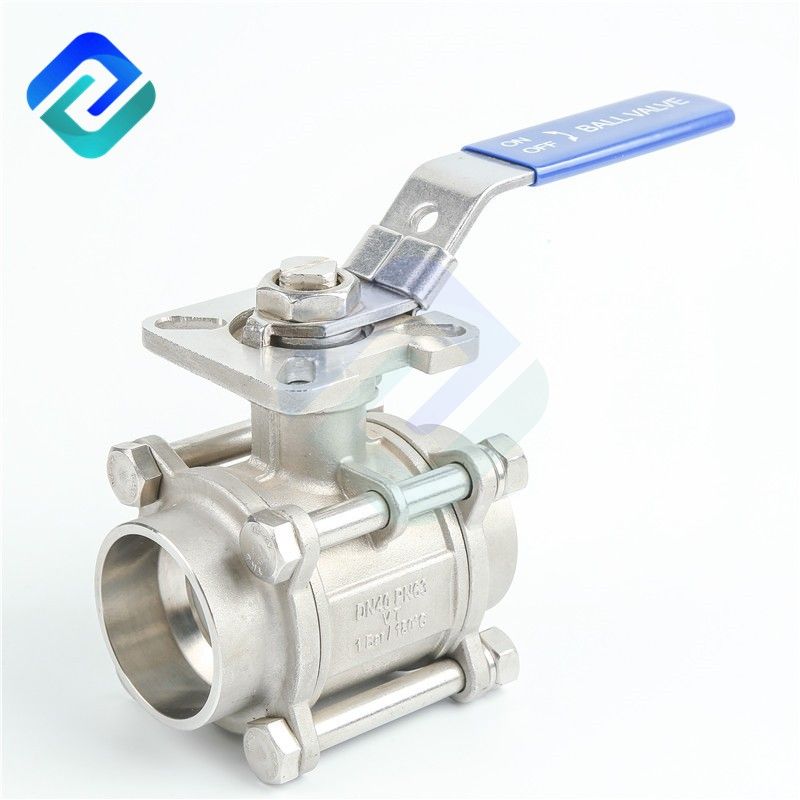

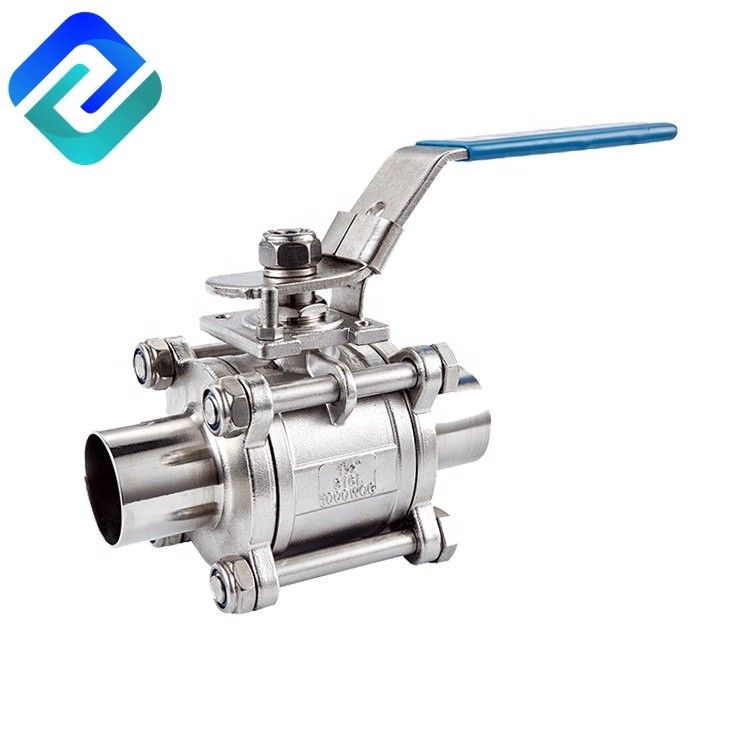

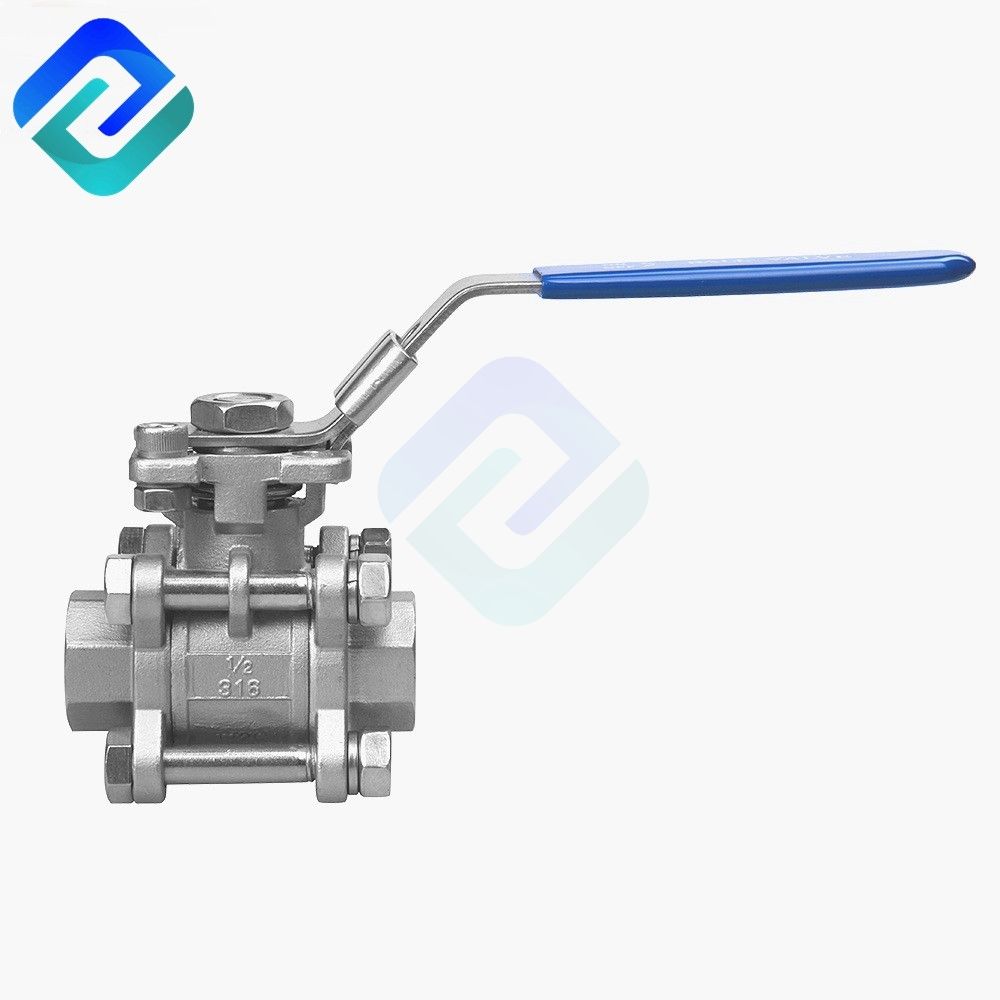

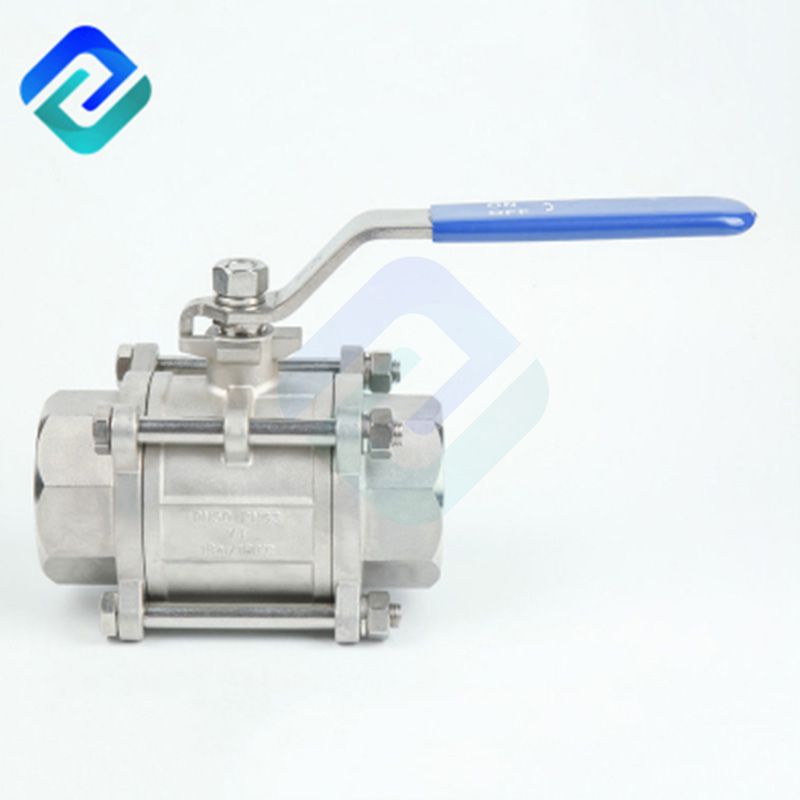

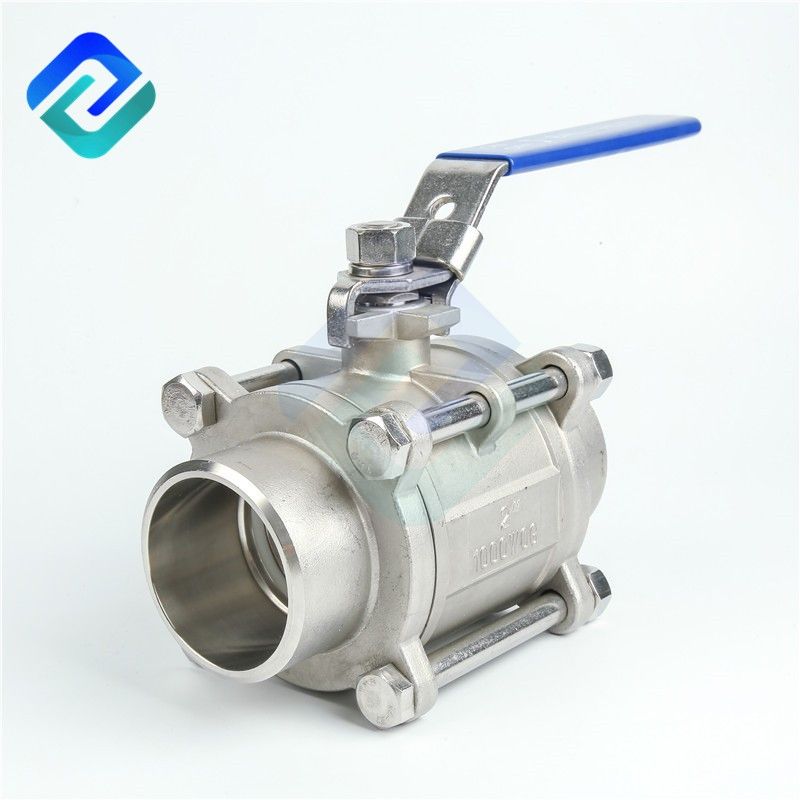

Products Show
