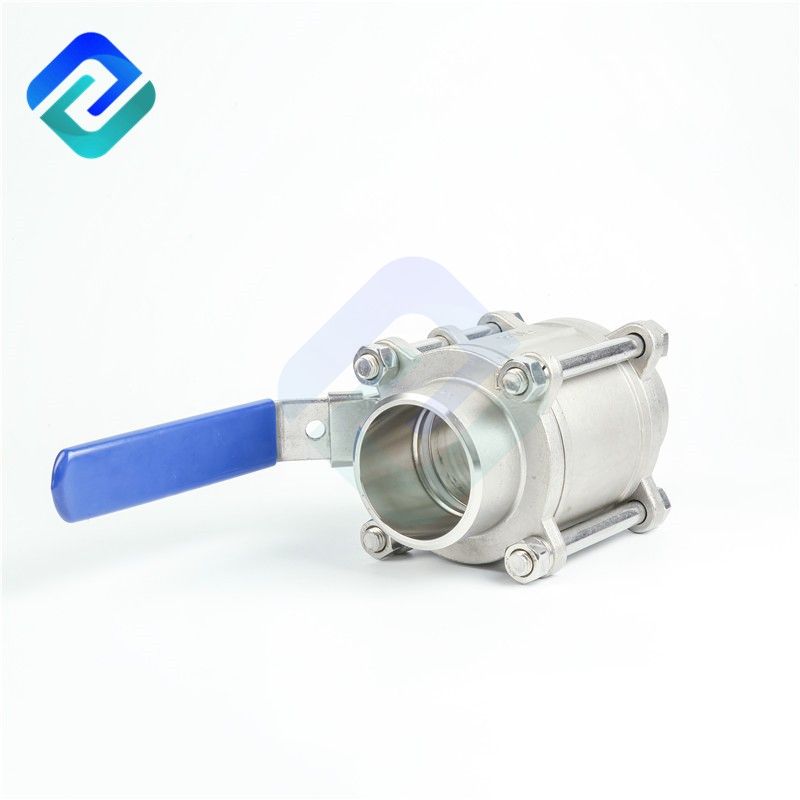

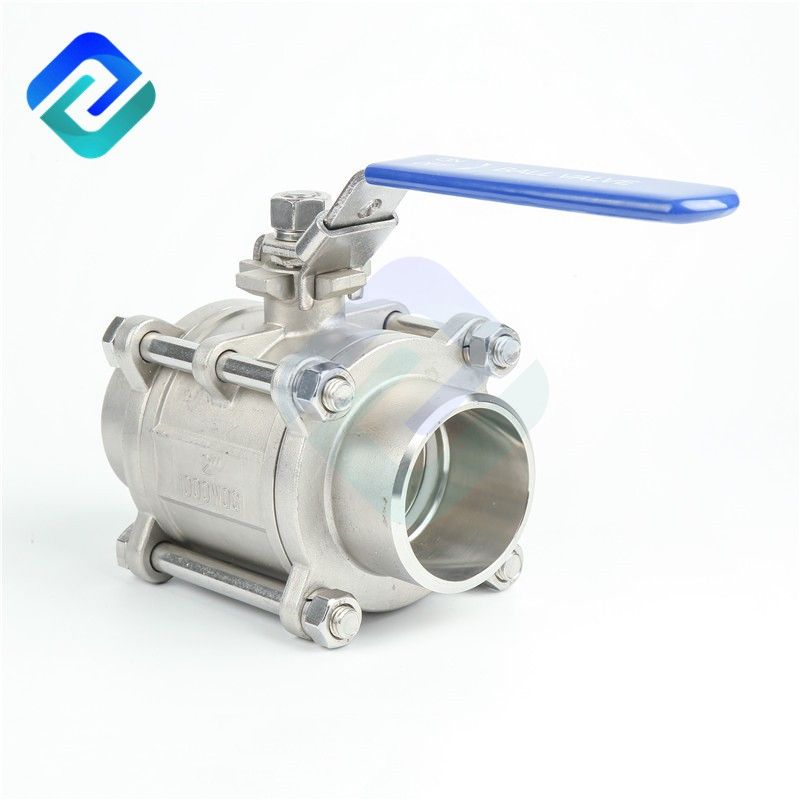

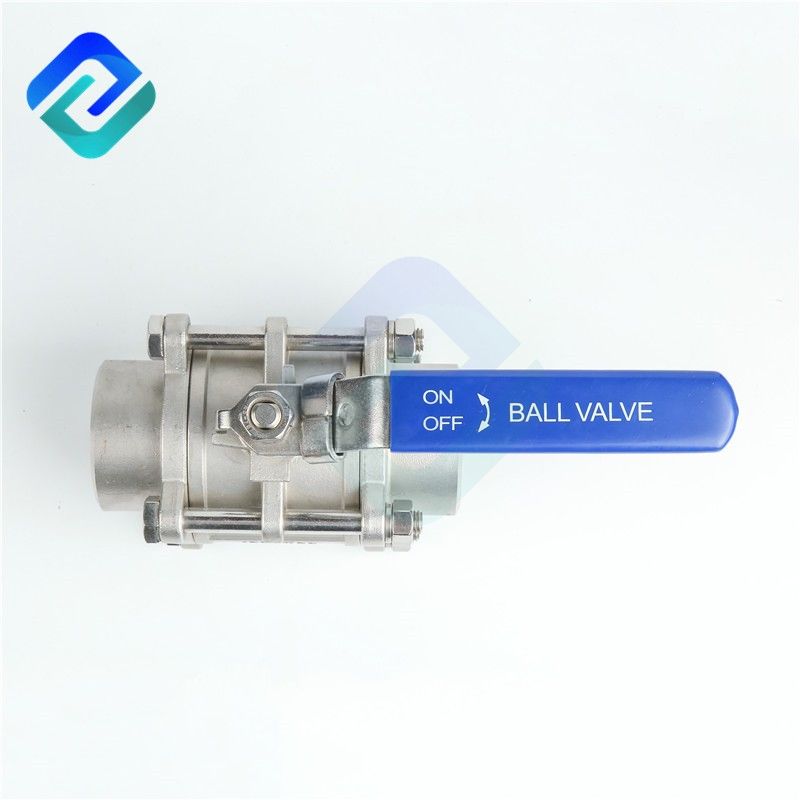

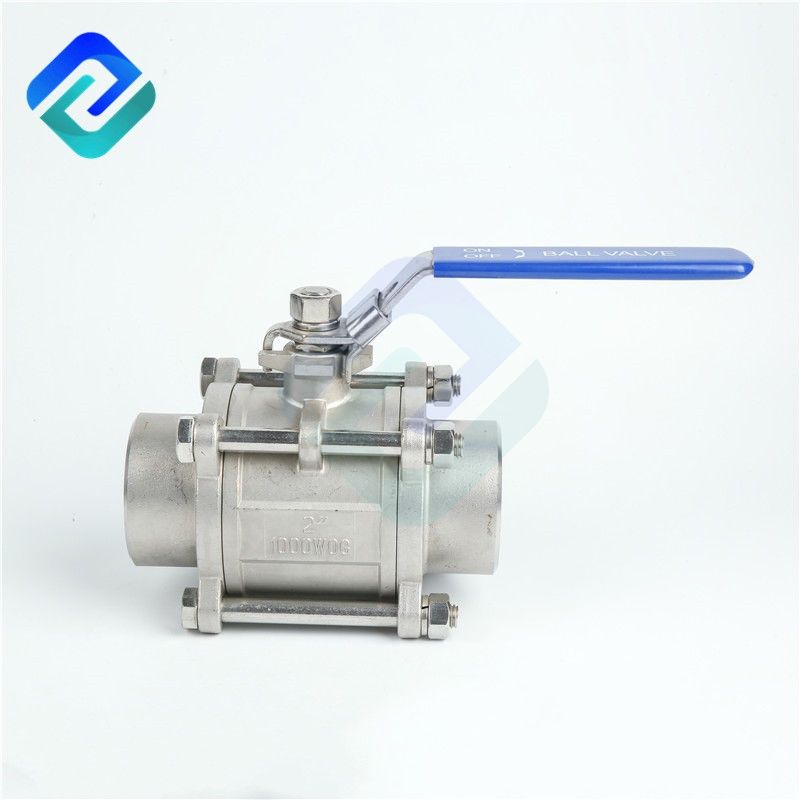

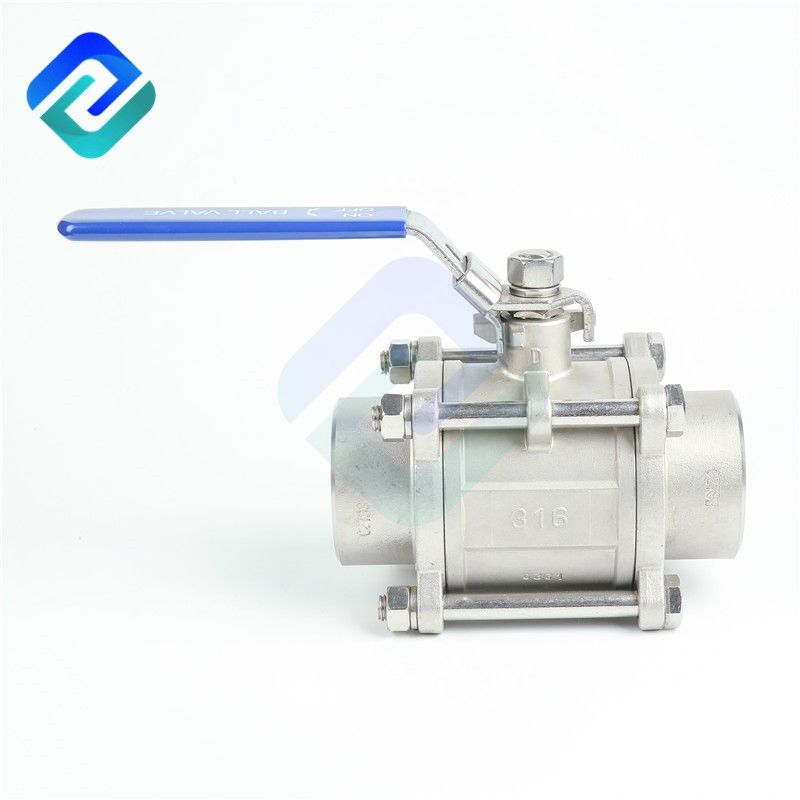

Stainless Steel 304 316L Manual butt weld 1000 WOG 3 PC ball valve

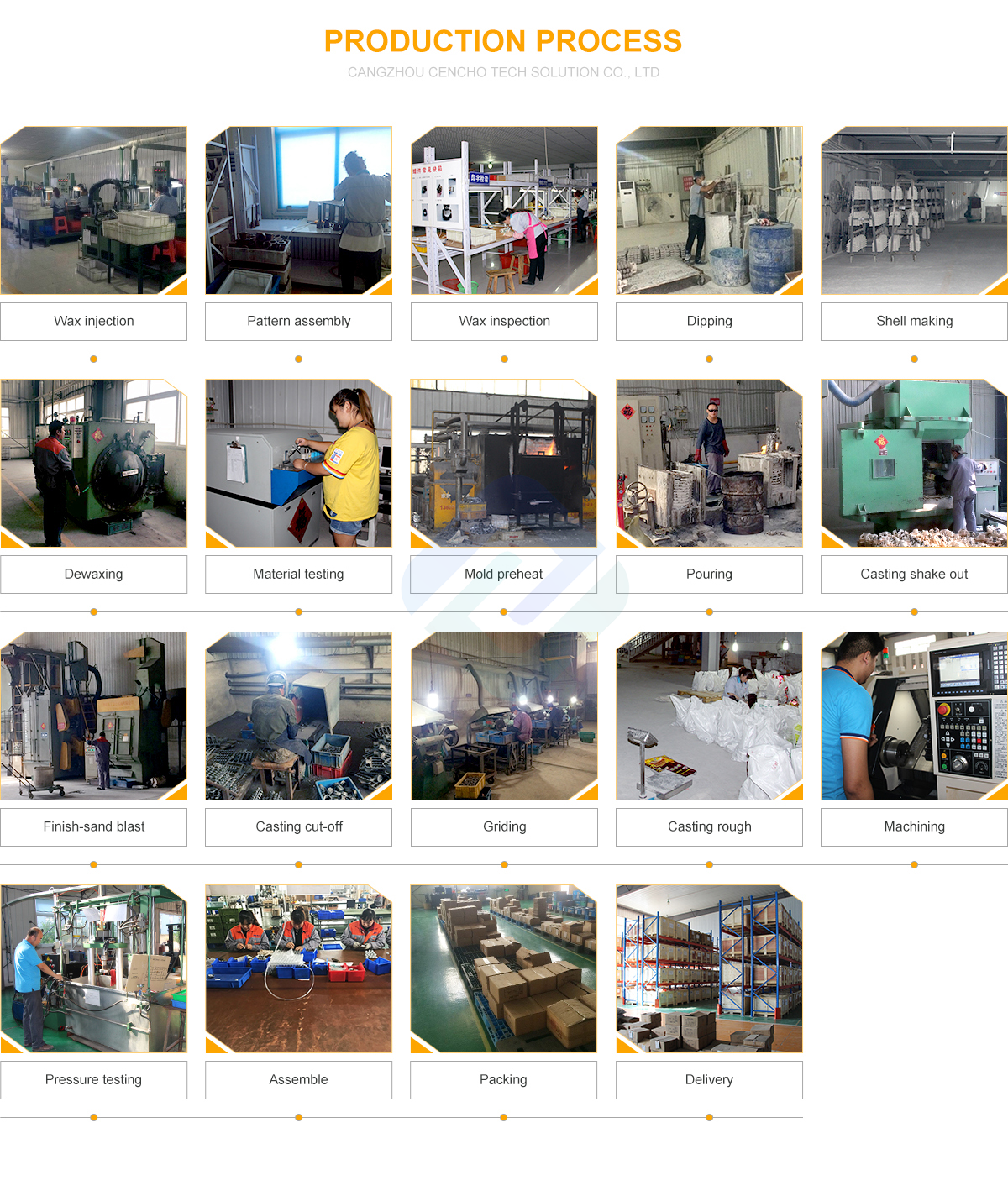

Investment castings for body and cap
Internal entry blow-out proof stem
Pressure Rating:1000PSI(PN63)
Butt Weld: ASME B16.25, DIN3239
Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF3M,WCB
Products Description
Investment castings for body and cap
Internal entry blow-out proof stem
Pressure Rating:1000PSI(PN63)
Butt Weld: ASME B16.25, DIN3239
Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF3M,WCB

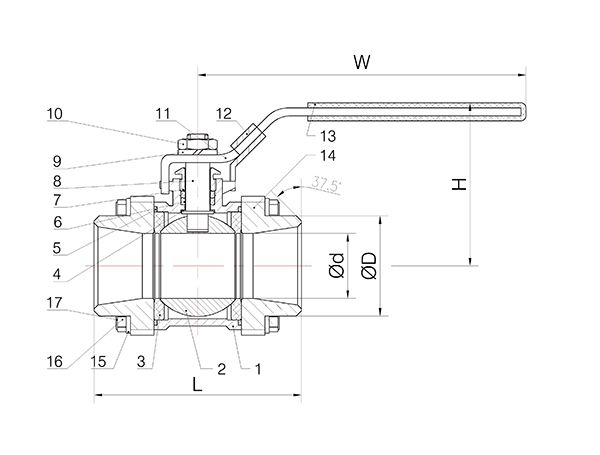

Material List
ITEM | PART | MATERIAL | QTY | |||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 | |
2 | BALL | 304 | 304 | 316 | 1 | |
3 | SEAT | PTFE/RPTFE | 2 | |||
4 | THRUST WASHER | PTFE | 1 | |||
5 | GASKET | PTFE | 2 | |||
6 | PACKING | PTFE | 1 | |||
7 | GLAND NUT | 304 | 1 | |||
8 | STEM | 304 | 304 | 316 | 1 | |
9 | SPRING WASHER | 304 | 1 | |||
10 | NUT | 304 | 1 | |||
11 | HANDLE | 304 | 1 | |||
12 | LOCK | 304 | 1 | |||
13 | HANDLE COVER | PLASTIC | 1 | |||
14 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 2 | |
15 | SPRING WASHER | 304 | 304 | 304 | 4(6) | |
16 | NUT | 304 | 304 | 304 | 4(6) | |
17 | BOLT | 304 | 304 | 304 | 4(6) | |
Dimension Table
SIZE | Φd | L | H | D | W | N.M | KGS | |
DN6 | 1/4'' | 12.5 | 51 | 43.5 | 18 | 103 | 5 | 0.28 |
DN10 | 3/8'' | 12.5 | 51 | 44.5 | 18 | 103 | 5 | 0.28 |
DN15 | 1/2'' | 15 | 63 | 50 | 18 | 103 | 6 | 0.45 |
DN20 | 3/4'' | 20 | 71 | 59 | 27.2 | 127 | 10 | 0.60 |
DN25 | 1'' | 25 | 80 | 61 | 31 | 127 | 12 | 0.81 |
DN32 | 1-1/4'' | 32 | 95 | 79 | 42.8 | 154 | 17 | 1.44 |
DN40 | 1-1/2'' | 38 | 103 | 83 | 48.6 | 154 | 30 | 1.72 |
DN50 | 2'' | 50 | 126 | 94 | 60.5 | 195 | 48 | 2.73 |
DN65 | 2-1/2'' | 62 | 158 | 135 | 76.3 | 244 | 58 | 5.45 |
DN80 | 3'' | 76 | 179 | 144 | 90 | 244 | 96 | 7.65 |
DN100 | 4'' | 94 | 213 | 149 | 116 | 285 | 124 | 15.78 |
