Lost wax precision casting, also known as investment casting, is a manufacturing process widely used for producing complex metal parts with high dimensional accuracy and fine surface finishes. This method involves creating a wax pattern that is a replica of the desired final part, coating it with a refractory ceramic material to form a mold, and then melting away the wax to leave a cavity into which molten metal is poured.
Products Description
This is a Lost wax precision OEM invest casting part manufacturers, we manufacturer it as per customer's drawings. we are an factory engaged in investment casting of stainless steel valves, fittings, coupling and varieties of parts in Plumbing, Electrical Engineering, chemical industry, Machinery and medical treatment.
A wax pattern is made using a die or by hand. This pattern is an exact replica of the part to be produced.
Multiple wax patterns can be attached to a wax tree or sprue to allow for the simultaneous casting of multiple parts.
The wax patterns are assembled onto a sprue to form a tree-like structure. This assembly will form the pathways for the molten metal to flow into the mold cavities.
The wax assembly is repeatedly dipped into a ceramic slurry and coated with fine sand. Each coat is allowed to dry before the next is applied.
This process is repeated until a thick ceramic shell has formed around the entire wax assembly.
The ceramic-coated wax assembly is placed in a kiln or autoclave where the wax is melted and drained away, leaving a hollow ceramic shell.
The ceramic shell is then fired at a high temperature to remove any remaining wax and to harden the shell.
Molten metal is poured into the pre-heated ceramic shell. The shell's high temperature ensures that the metal flows smoothly into all parts of the mold, reducing the risk of defects.
Once the metal has cooled and solidified, the ceramic shell is broken away, revealing the metal castings.
Any remaining ceramic material is cleaned off, often using a mechanical or chemical process.
The individual cast parts are cut from the sprue.
Additional finishing processes such as grinding, polishing, or machining may be performed to achieve the desired dimensions and surface finish.

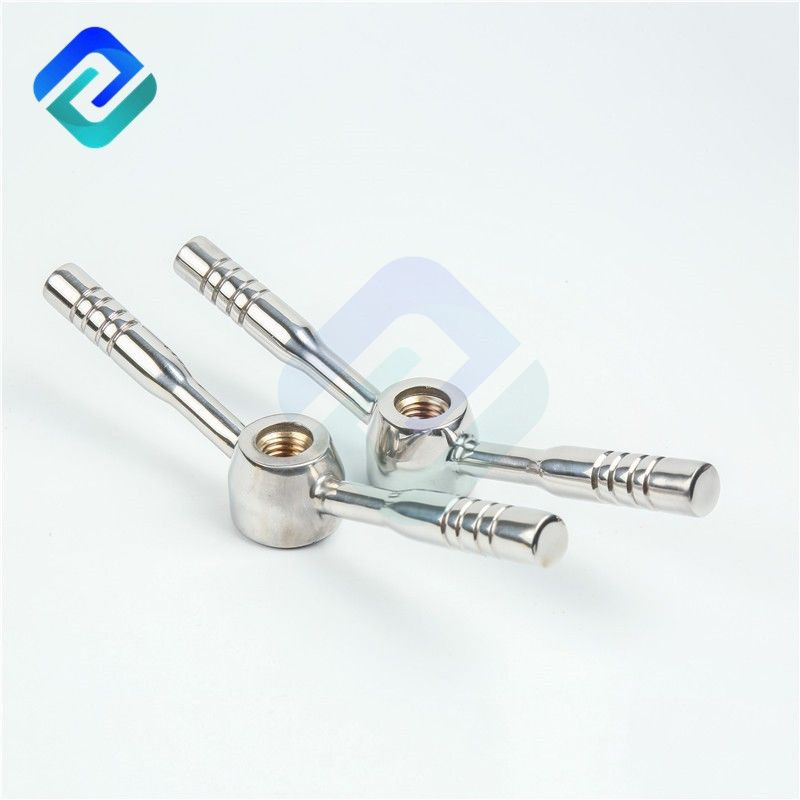

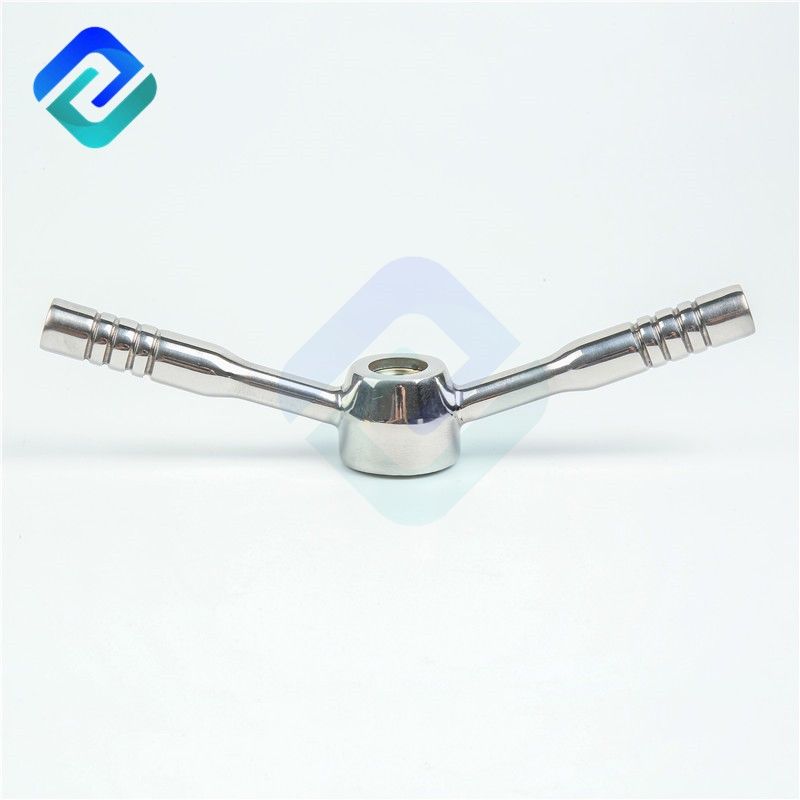

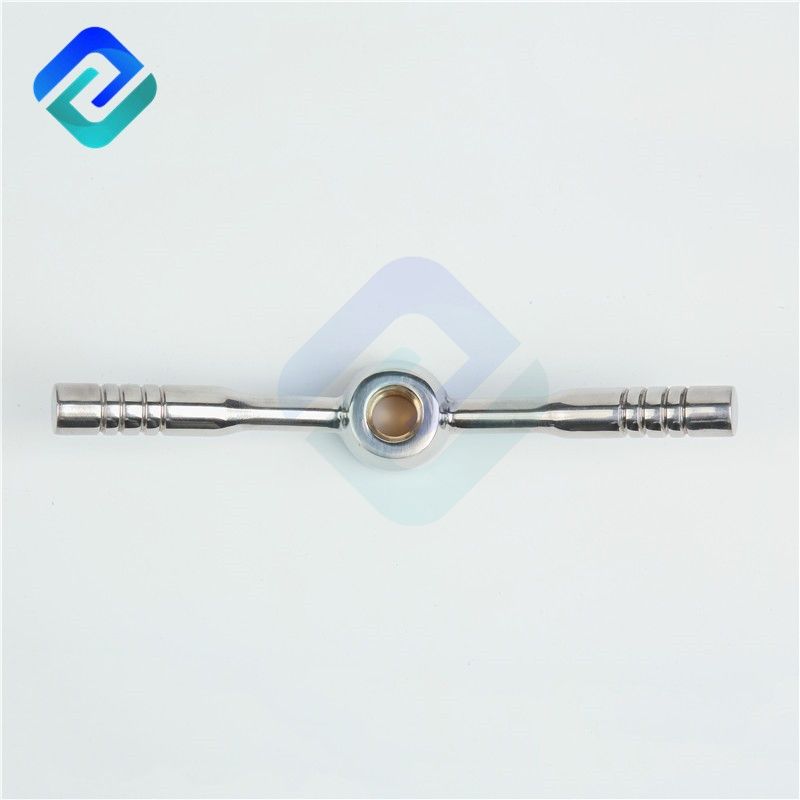

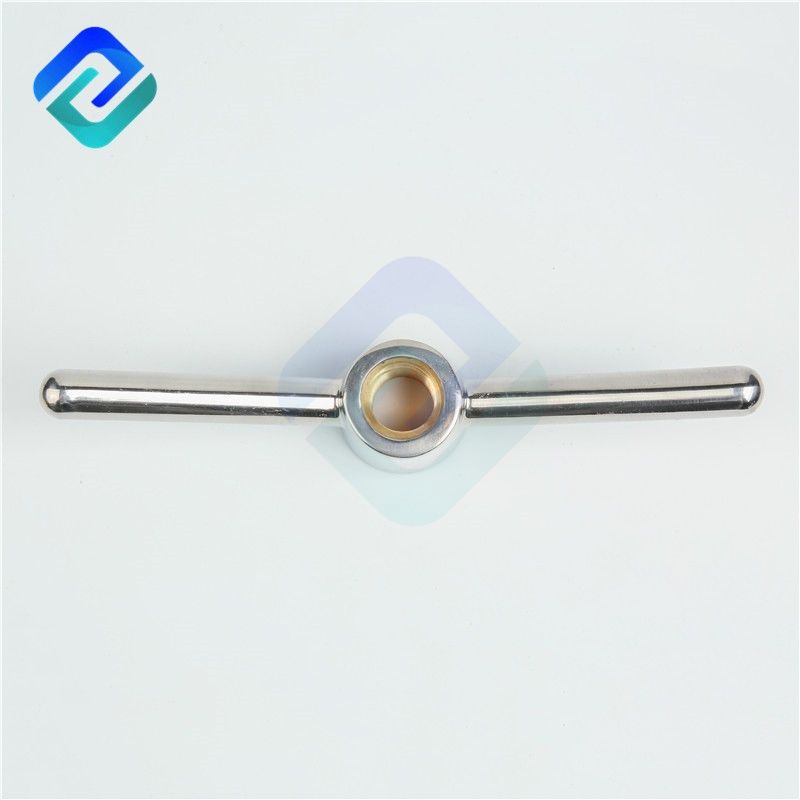

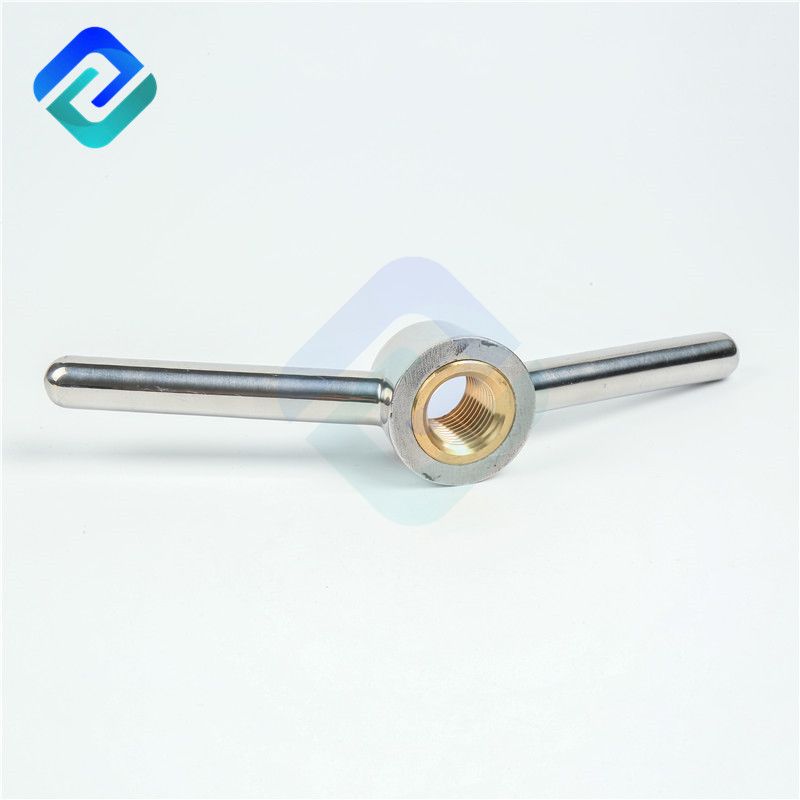

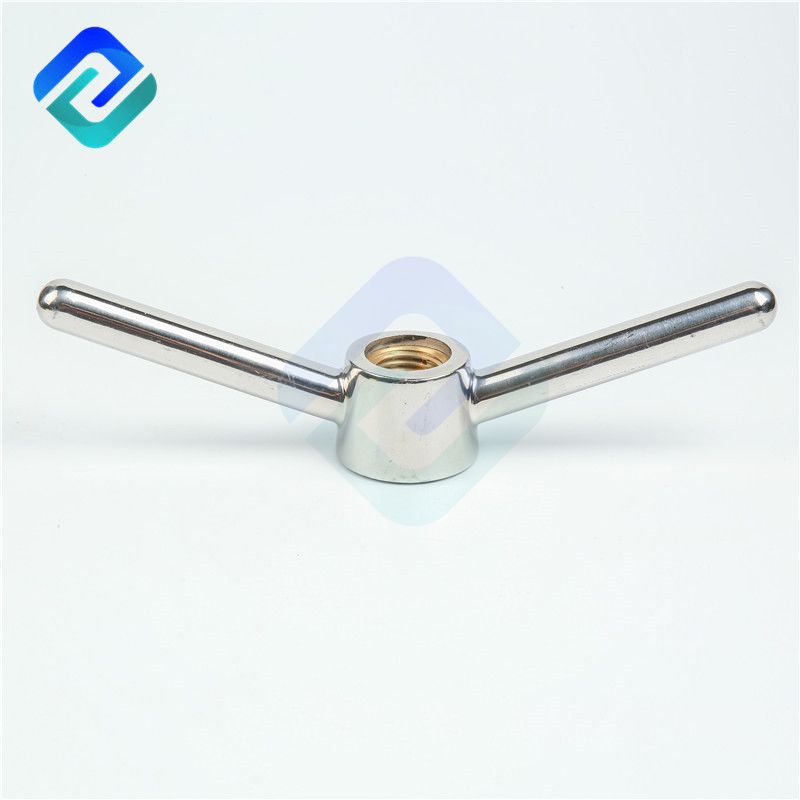

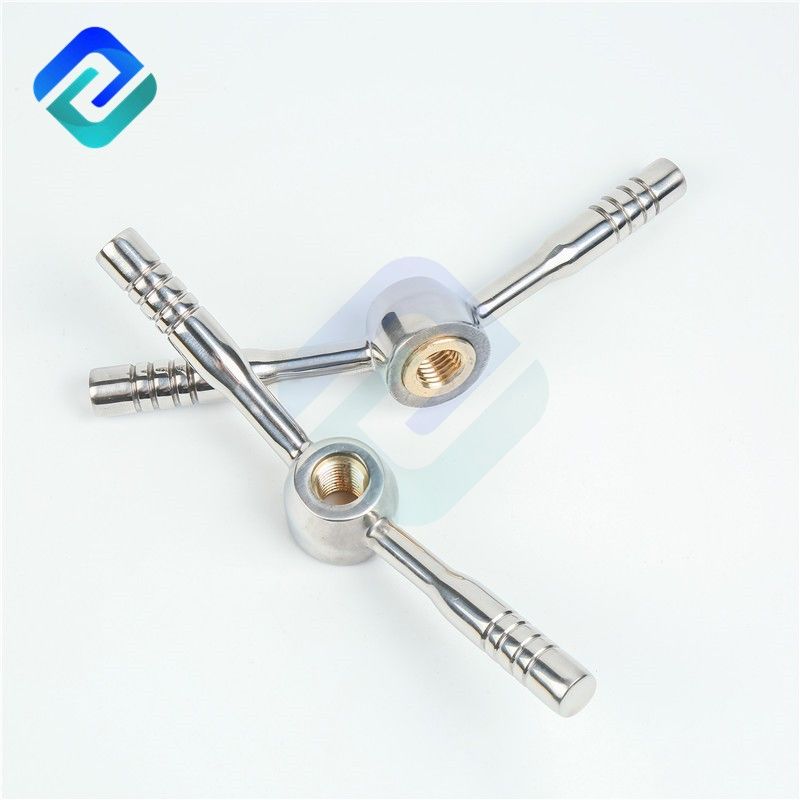

Pictures and drawings of Lost wax precision OEM invest casting part manufacturers:
Complex Geometries: Can produce intricate shapes that would be difficult or impossible to achieve with other manufacturing methods.
Precision: Offers high dimensional accuracy and excellent surface finish.
Material Versatility: Suitable for a wide range of metals and alloys, including those with high melting points.
Minimal Waste: Efficient material use since the wax patterns can be recycled.
Aerospace: Engine components, turbine blades, and structural parts.
Automotive: Engine parts, gear components, and other precision parts.
Medical: Surgical instruments, orthopedic implants, and dental devices.
Industrial: Valves, fittings, and various machinery parts.
Our customers:
FAQ:
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
4. How to proceed an order for valve?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
5. Do you offer guarantee for the products?
A: Yes, we offer 10 years warranty to our products.
