Material: CF8/CF8M/WCB
Body material: Stainless steel CF8, CF8M
Medium:Water Oil Gas(WOG)
Structure:BALL, Shut Off Ball Valve
Connection:Thread End
Pressure Rating:1000PSI(PN63)
Working Temperature: -25℃~+180℃
Power: Manual
Port Size: 1/4"-1"
Products Description

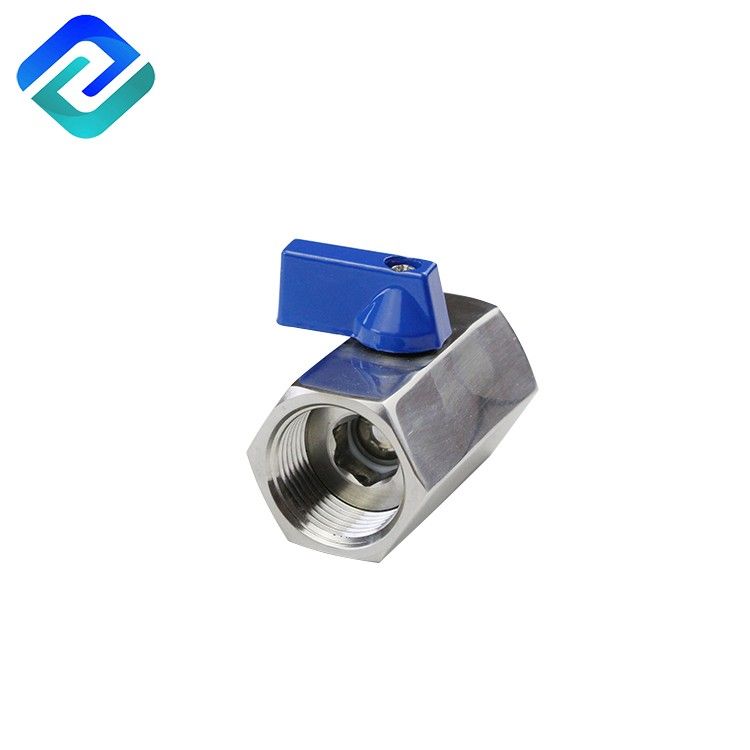

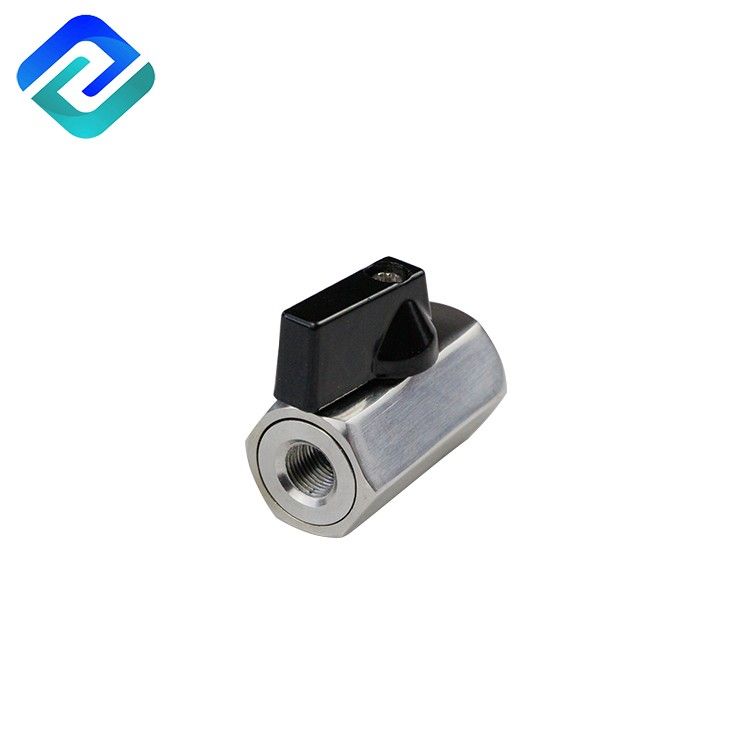

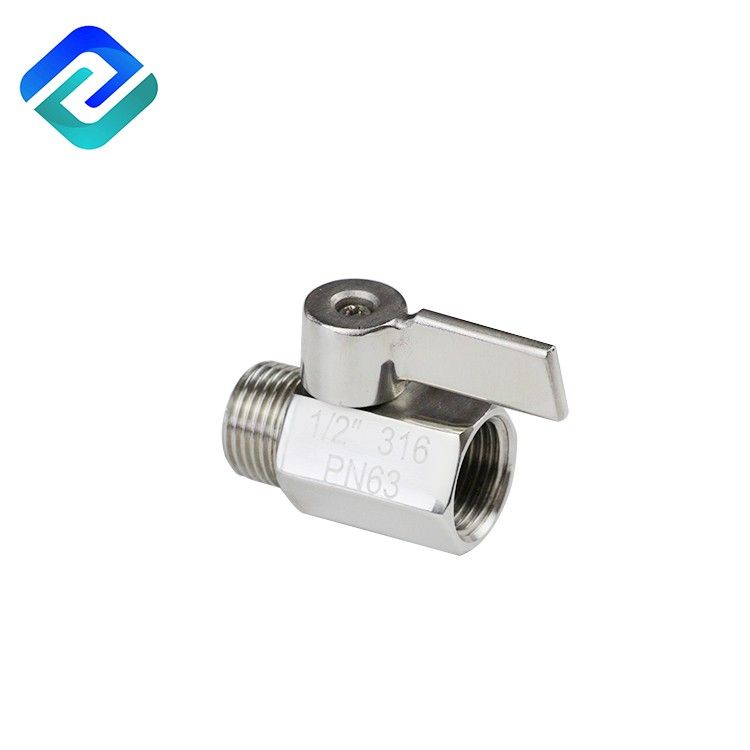

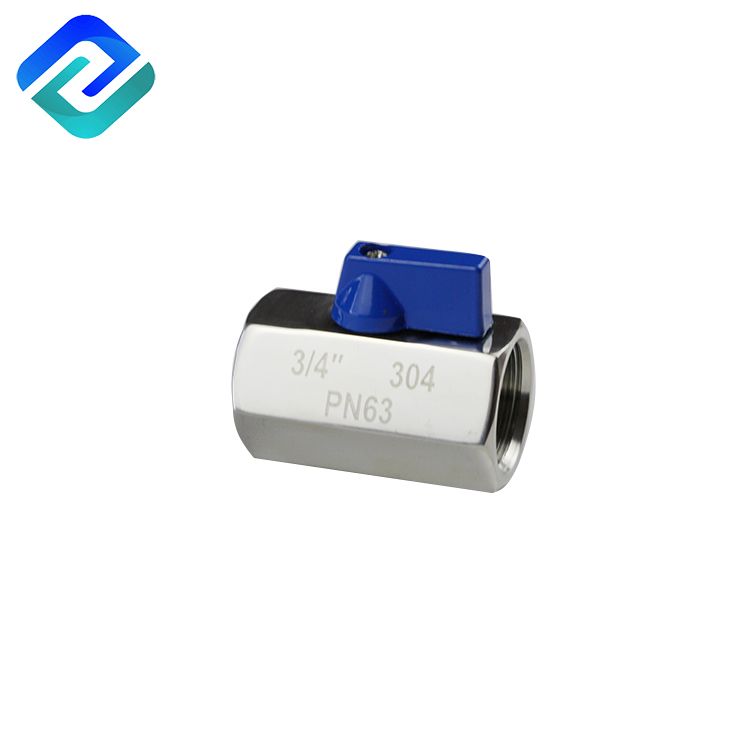

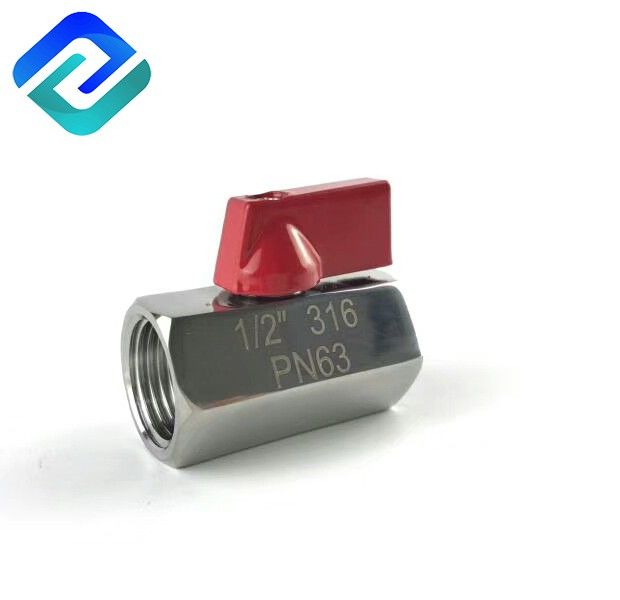

1 inch cf8m stainless stee mini ball valves for gas
1.SS mini ball valve is small size and can be installed in a limited space
2.The handle's length nearly is same as the body, so won't influence the install space;
also, the handle is easy for us to contarol ON/OFF when using
3.SS mini ball valve can be quickly cut off in the pipeline system
4.The size can be 1/8", 1/4", 3/8", 1/2", can depends on customer's use
5 Handle color can be custom made, like Grey, Red, Black, or others
Size | 1/8" -1" |
Pressure | 1000psi |
Temperature | -20-300 degree |
Connection | Thread or Weld |
Sealing | PTFE,RPTFE,PPL ETC |
Process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Certification | CE, ISO, our factory has been inspected by SGS and TUV |
Locking | without |
Capacity to produce | 100,00pcs/Month |
Main products | Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc. |
SS mini ball valve are durable, performing well after many cycles, and reliable, closing
securely even after long periods of disuse. SS mini ball valve qualities make them
an excellent choice for shutoff and control applications, where they are often preferred to
gates and globe valves, but they lack their fine control in throttling applications.
