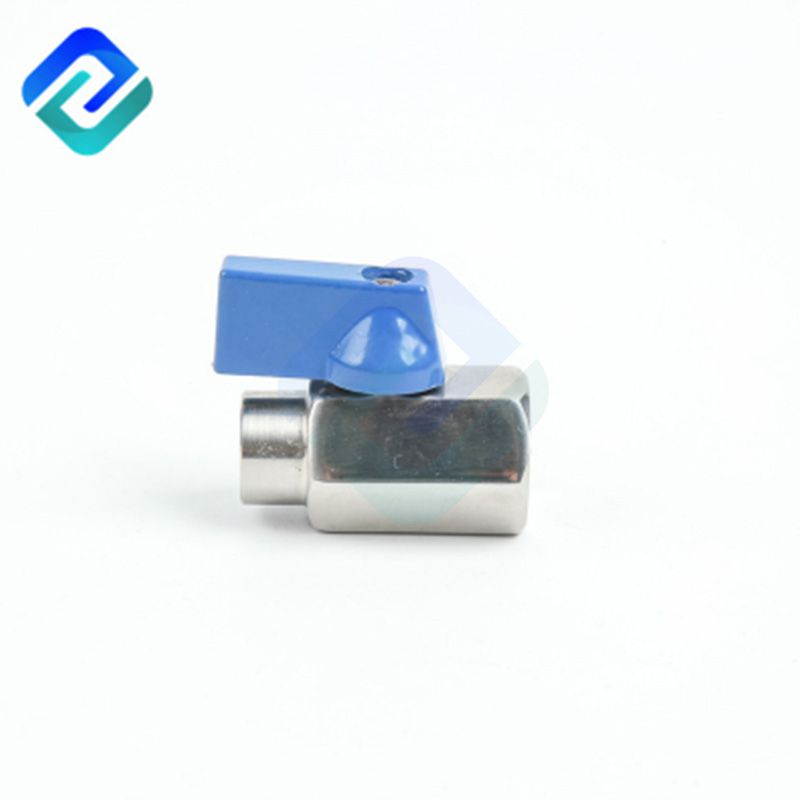

Mini ball valve is suitable for PN1.0 ～ 4.0MPa, working temperature -29 ～ 180 ℃ (seal ring is reinforced polytetrafluoroethylene) or -29 ～ 300 ℃ (seal ring is para-polystyrene)
Products Description
Mini ball valve is suitable for PN1.0 ～ 4.0MPa, working temperature -29 ～ 180 ℃ (seal ring is reinforced polytetrafluoroethylene) or -29 ～ 300 ℃ (seal ring is para-polystyrene)
On the pipeline, it is used to cut off or connect the medium in the pipeline, choose different materials, and can be applied to various media such as water, steam, oil, nitric acid, acetic acid and so on.
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | |
1 | 0-RING | VITON | 1 | |
2 | STEM | 304 | 316 | 1 |
3 | BOLT | 304 | 2 | |
4 | LEVER | ALUMINUM ALLOY | 1 | |
5 | BODY | CF8/CF8M | 2 | |
6 | CAP | CF8/CF8M | 1 | |
7 | BALL SEAT | PTFE | 1 | |
8 | BALL | 304 | 316 | 1 |
9 | BALL SEAT | PTFE | 1 | |
10 | THRUST WASHER | PTFE | 1 | |
DIMENSION TABLE
SIZE | D | L | H | W | S | |
DN8 | 1/4” | 8.0 | 39 | 26 | 23 | 21 |
DN16 | 3/8” | 8.2 | 42 | 26.5 | 23 | 21 |
DN15 | 1/2” | 9.2 | 46 | 28.5 | 23 | 26 |
DN20 | 3/4” | 12.5 | 55 | 32 | 23 | 31 |
DN25 | 1” | 15.5 | 66 | 33.5 | 23 | 39 |
