Size: 1/4"-1"
Mini ball valve
Investment Casting for body and Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating:1000PSI (PN63)
Thread End:ANSI B2.1,BS21,ISO7/1
Working Temperature:-25℃+180℃
Material:CF8M,CF8,CF3M,WCB
Inspection Testing:API 598,EN 12266
Products Description

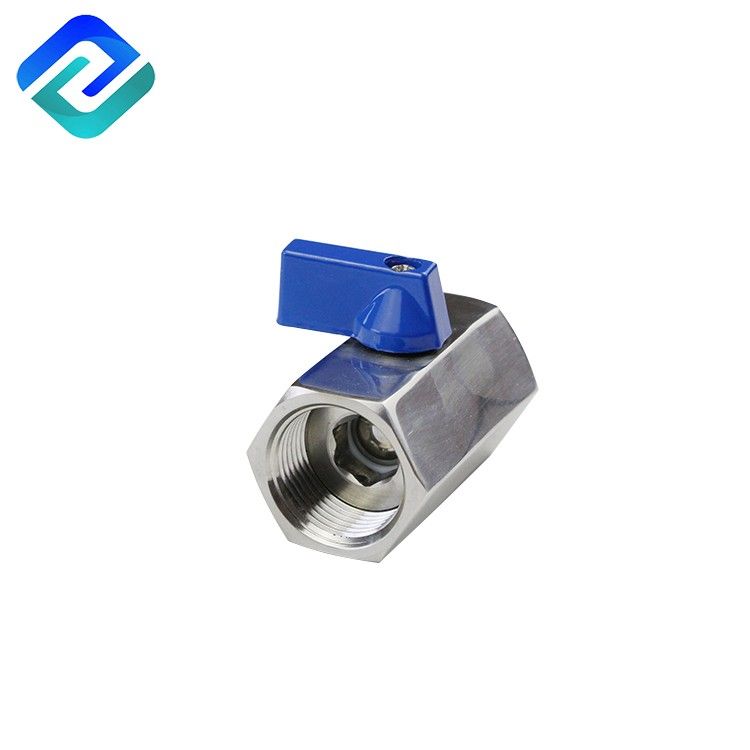

Superior quality stainless steel 1000 wog female mini ball valve for machine
Stainless Steel Mini Ball Valve lies in the name itself, it is always in mini size from 1/8" to 1". Stainless Steel Mini Ball Valves always with the polished outside surface.

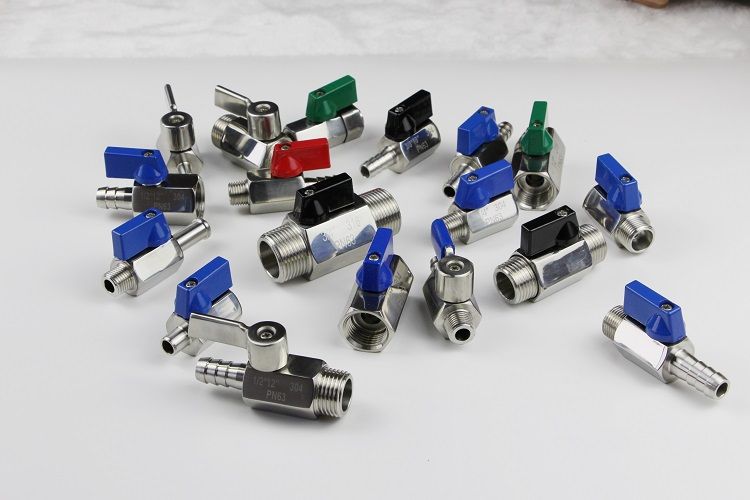

It is including with FF Stainless Steel Mini Ball Valve, MF Stainless Steel Mini Ball Valve, MM Stainless Steel Mini Ball Valve, Mini Ball Valve M with Hosetails Ends, Mini Ball Valve F with Hosetails Ends, etc.

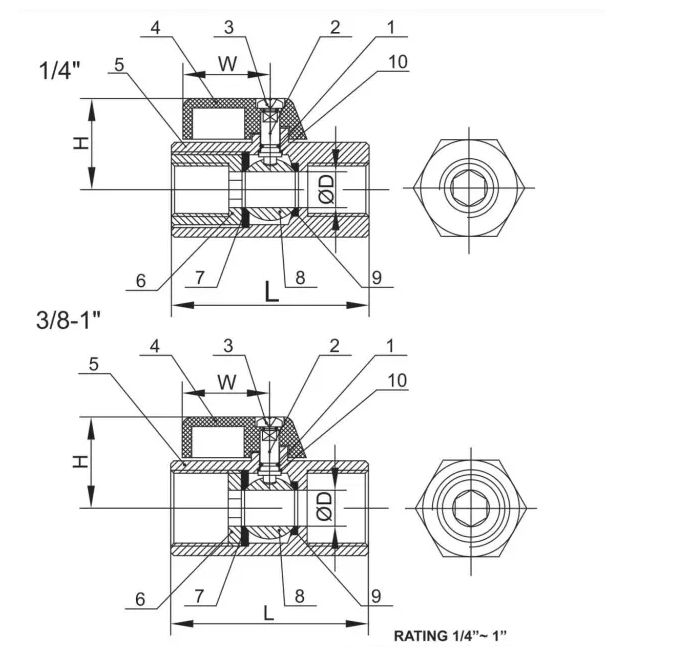

Dimension Table
SIZE | D | L | H | W | S |
DN8 1/4" | 8.0 | 39 | 26 | 23 | 21 |
DN10 3/8" | 8.2 | 42 | 26.5 | 23 | 21 |
DN15 1/4" | 9.2 | 46 | 28.5 | 23 | 26 |
DN20 3/4" | 12.5 | 55 | 32 | 23 | 31 |
DN25 1" | 15.5 | 66 | 33.5 | 23 | 39 |
Mini ball valve are widely used in medicine, food, petroleum, water treatment, machinery, environmental protection, chemical industry, metallurgy and other industries.
