Stainless steel fittings, particularly those made from 304 and 316 grades, are widely used in various industries due to their strength, corrosion resistance, and durability. Here's a detailed look at the differences between 304 and 316 stainless steel fittings:
- 304 Stainless Steel: Known as A2 stainless steel, it contains 18% to 20% chromium and 8% to 10.5% nickel. It is the most widely used stainless steel due to its balance of corrosion resistance and cost-effectiveness.
- 316 Stainless Steel: Known as A4 stainless steel, it contains 16% chromium, 10% nickel, and 2% molybdenum. The addition of molybdenum enhances its corrosion resistance, especially in chloride environments, making it suitable for marine applications and other aggressive conditions.

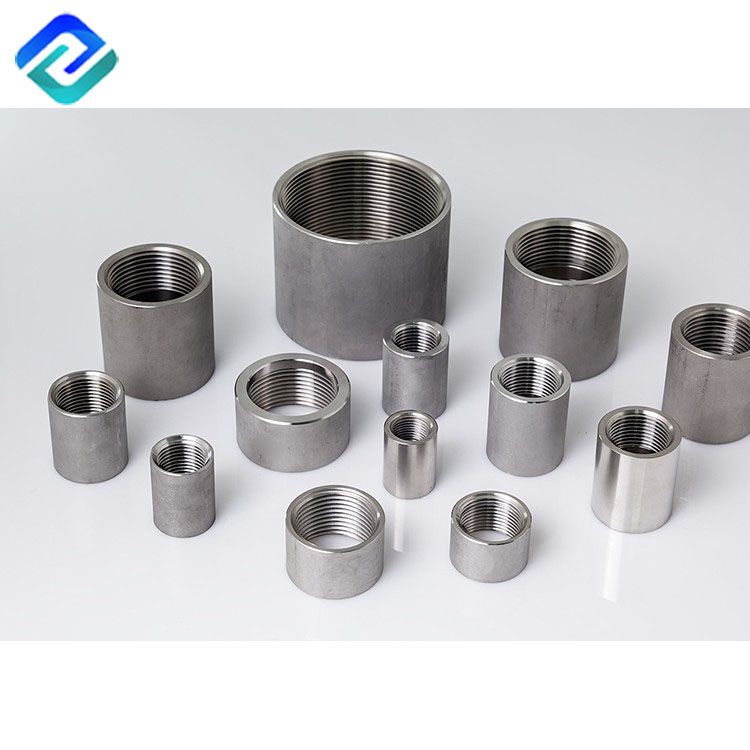

304 /316L Stainless Steel Sanitary Natural Gas High Pressure Pipe Fittings
- 304 Stainless Steel: Offers good corrosion resistance for general use, but it can be susceptible to pitting and crevice corrosion in chloride-rich environments.
- 316 Stainless Steel: With its higher nickel and molybdenum content, 316 provides superior corrosion resistance, especially to pitting and crevice corrosion from chlorides, making it the preferred choice for marine environments, coastal regions, and chemical processing.
- 304 Stainless Steel: Has a tensile strength ranging from 520-720 MPa for an 8mm thickness, and a yield strength of 215 MPa. It is known for its good ductility and weldability.
- 316 Stainless Steel: Has a tensile strength ranging from 530-680 MPa for an 8mm thickness, and a yield strength of 290 MPa. It offers slightly higher strength and hardness, making it more suitable for applications requiring more force.
- 304 Stainless Steel: Performs well in temperatures up to 800°C (1472°F), making it suitable for a variety of applications.
- 316 Stainless Steel: Retains its strength and stability at higher temperatures, with good performance up to 1350°C (2460°F), although it is not recommended for continuous use above 815°C (1507°F) without special considerations.

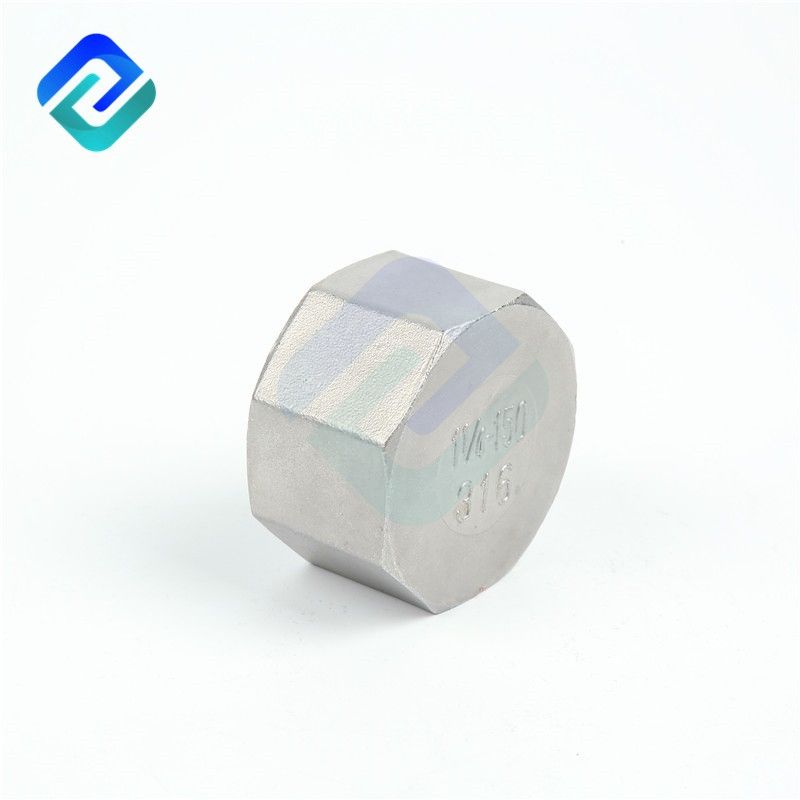

Stainless Steel Pipe Fittings Food Grade
- 304 Stainless Steel: Generally less expensive than 316 due to its more common composition, making it a cost-effective choice for applications where extreme corrosion resistance is not required.
- 316 Stainless Steel: More expensive due to its higher content of nickel and molybdenum, which also increases its value and performance in corrosive environments.
- 304 Stainless Steel: Commonly used in construction, food processing, and general industrial applications where cost is a consideration and corrosive conditions are not extreme.
- 316 Stainless Steel: Preferred for marine equipment, pharmaceutical equipment, chemical plants, medical implants, and food processing environments where high corrosion resistance is required5.
- Both grades require regular cleaning to maintain their corrosion-resistant properties. However, 316 may require less frequent maintenance in aggressive environments due to its superior corrosion resistance.
In conclusion, the choice between 304 and 316 stainless steel fittings depends on the specific requirements of the application, including the environment, temperature, and budget. While 304 offers a good balance of cost and performance for general use, 316 provides enhanced durability and resistance for more demanding applications. Understanding these differences allows for the selection of the appropriate stainless steel grade to ensure the success and longevity of a project.
