Camlock fittings are a popular choice in industries that require quick and secure fluid or gas connections. These fittings are widely used in various applications, including agriculture, construction, and manufacturing, due to their reliability and ease of use. Whether you’re new to camlock fittings or looking to expand your knowledge, this guide will help you understand the different types, uses, and material selection for camlock fittings.
Camlock fittings, also known as cam and groove fittings, are a type of quick-connect coupling that allows for a fast, secure, and leak-free connection and disconnection of hoses, pipes, and other equipment. The camlock design uses spring-loaded arms, called cams, which lock into a groove on the counterpart fitting. This mechanism ensures a tight, reliable seal, making it ideal for transporting liquids, gases, and powders in a wide range of industries.

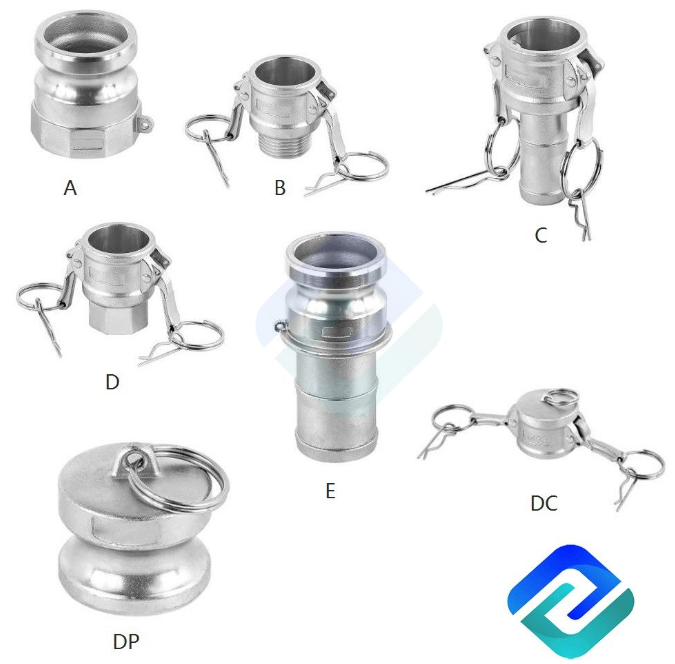

Camlock fittings come in several different types, each suited for specific applications. The main types include:
Type A: Female camlock with a male thread. This type is used when connecting to a male-threaded pipe or fitting.
Type B: Male camlock with a female thread. This is used when connecting to a female-threaded pipe or fitting.
Type C: Female camlock with a female thread. Type C fittings are often used in applications where a female connection is required.
Type D: Male camlock with a male thread. Type D is commonly used for creating secure connections between male-threaded equipment and other parts.
Type E: Female camlock with a flat face. These fittings are designed for situations where a smooth, leak-resistant connection is required.
Type F: Male camlock with a flat face. These are typically used for specialized applications requiring a smooth, secure seal.
In addition to these basic types, there are also specialized fittings such as adapters and reducers, which are designed to connect camlock fittings to different types of threads or pipe sizes.

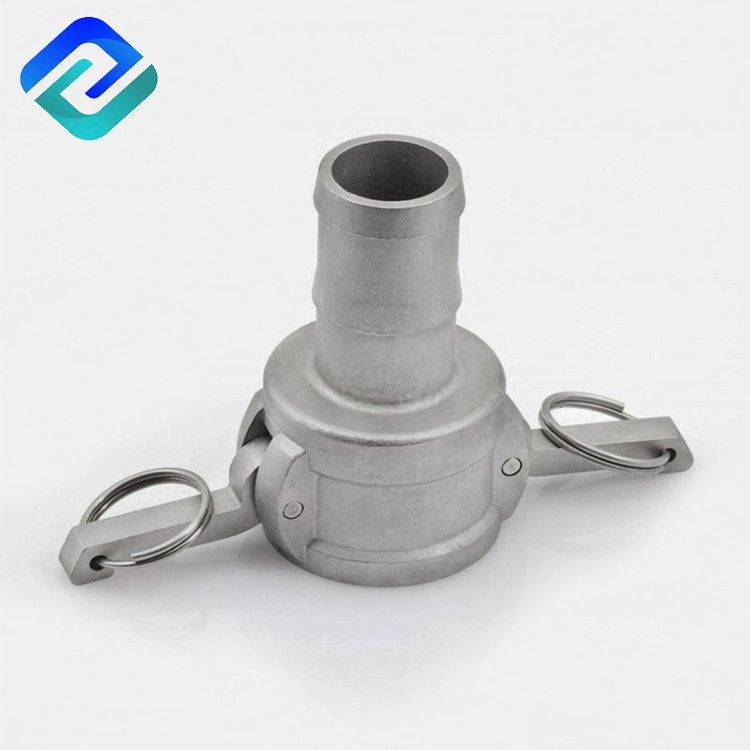

Stable Quality Stainless Steel Camlock Quick Coupling Fittings
Camlock fittings are used in a wide variety of industries and applications. Some of the most common uses include:
Agriculture: Camlock fittings are commonly used in irrigation systems, where they help connect hoses to pumps or tanks. They are also used for transferring liquids such as fertilizers, pesticides, and water.
Construction: In construction, camlock fittings are used for connecting hoses to pumps, mixers, and other equipment. They are also used for transferring concrete, grout, and slurry.
Chemical Processing: Camlock fittings are ideal for transferring chemicals and other hazardous liquids safely. Their leak-proof design ensures that chemicals are transported without risk of spills or contamination.
Oil & Gas: In the oil and gas industry, camlock fittings are used for connecting pipelines, pumps, and tanks for fluid transfer. They are commonly used for transporting petroleum products and other liquids.
Food & Beverage: Camlock fittings are used in the food and beverage industry to transfer liquids such as milk, juices, and syrups. The sanitary design of camlock fittings makes them suitable for food-grade applications.
Choosing the right material for camlock fittings is essential to ensure compatibility with the fluids or gases being transferred, as well as the durability of the fittings. Common materials used in camlock fittings include:
Aluminum: Lightweight and resistant to corrosion, aluminum camlock fittings are ideal for low-pressure applications. They are commonly used in industries such as agriculture, construction, and chemical processing.
Stainless Steel: Known for its strength, durability, and corrosion resistance, stainless steel is the preferred material for high-pressure applications and those involving harsh chemicals or extreme temperatures. It is widely used in the food and beverage, oil and gas, and chemical processing industries.
Brass: Brass camlock fittings offer good corrosion resistance and are often used in plumbing and HVAC applications. They are suitable for both water and gas applications but are not recommended for aggressive chemicals or extreme temperatures.
Plastic (Polypropylene or PVC): Plastic camlock fittings are lightweight, cost-effective, and resistant to certain chemicals, making them a popular choice for chemical processing and agriculture. They are typically used for low-pressure applications and are not suitable for high temperatures.
Carbon Steel: Carbon steel camlock fittings are durable and can handle high-pressure applications. However, they may require additional coatings or finishes to improve corrosion resistance, especially when used outdoors or in moist environments.
When selecting a material for camlock fittings, it’s crucial to consider the fluid or gas being transferred, as well as factors such as temperature, pressure, and environmental conditions. Always consult with the manufacturer to ensure compatibility with your application.
Stainless Steel Camlock Fittings Lower B
Camlock fittings offer several benefits that make them a popular choice for various industries:
Ease of Use: Camlock fittings allow for quick and easy connection and disconnection without the need for tools, making them highly convenient for applications that require frequent setup and teardown.
Leak-Proof Design: The spring-loaded cam arms create a tight, secure seal, ensuring that there are no leaks during operation. This is especially important for applications involving hazardous or expensive fluids.
Versatility: Camlock fittings are available in a wide range of sizes and configurations, allowing them to be used in many different industries and applications. They are compatible with various hose materials, pipe threads, and flange connections.
Cost-Effective: Compared to other types of couplings, camlock fittings are relatively inexpensive and provide a reliable and durable solution for fluid and gas transfer.
Durability: Depending on the material chosen, camlock fittings can withstand high pressures, extreme temperatures, and aggressive chemicals, providing long-lasting performance in tough conditions.
1. What is the difference between a Type A and Type B camlock fitting?
Type A camlock fittings have a female camlock with a male thread, while Type B fittings have a male camlock with a female thread. The difference determines how they connect to other parts, with Type A being used for male-threaded pipe connections and Type B used for female-threaded pipe connections.
2. Can camlock fittings be used for high-pressure applications?
Yes, camlock fittings made from materials such as stainless steel and carbon steel can handle high-pressure applications. However, it's important to select a fitting that is specifically designed for high-pressure use and to ensure the material is compatible with the fluid being transferred.
3. Are camlock fittings suitable for food-grade applications?
Yes, camlock fittings made from food-grade materials such as stainless steel or FDA-approved plastics are suitable for food and beverage applications. These fittings are designed to meet sanitary standards and ensure safe handling of liquids like milk, juices, and syrups.
4. How do I maintain camlock fittings?
To maintain camlock fittings, ensure they are regularly inspected for wear and tear. Clean them after each use to prevent the buildup of dirt or debris. Replace any damaged parts, such as seals or cams, to ensure a tight and leak-free connection.
5. What is the maximum temperature camlock fittings can handle?
The maximum temperature that camlock fittings can handle depends on the material they are made from. Stainless steel fittings can typically handle high temperatures, while plastic fittings have a lower temperature tolerance. Always check the manufacturer’s specifications for temperature limits based on the material used.
In conclusion, camlock fittings are an essential component in a wide range of industries due to their durability, ease of use, and reliability. By understanding the types, uses, and material options, you can select the right camlock fitting to meet your specific needs and ensure a safe, efficient fluid or gas transfer system.
