A 3-way ball valve is a versatile and essential component used in many industries, including plumbing, HVAC, and manufacturing. Its unique design allows for more complex fluid control compared to standard 2-way valves. The 3-way ball valve can direct flow, mix different media, or divert flow to different outlets, making it useful in various applications. In this guide, we will explain how a 3-way ball valve works, its types, and its common uses.
A 3-way ball valve consists of a spherical ball with a hole (known as the bore), which rotates inside the valve body to control the flow of fluid. The ball is housed within a valve body with three ports or openings, typically labeled as A, B, and C. By rotating the ball, the valve can control the direction of the fluid flow between these three ports.
The ball is controlled by a handle or actuator, which turns the ball 90 or 180 degrees to direct the flow. Seals or seats around the ball ensure that the valve remains leak-proof when in the closed position.

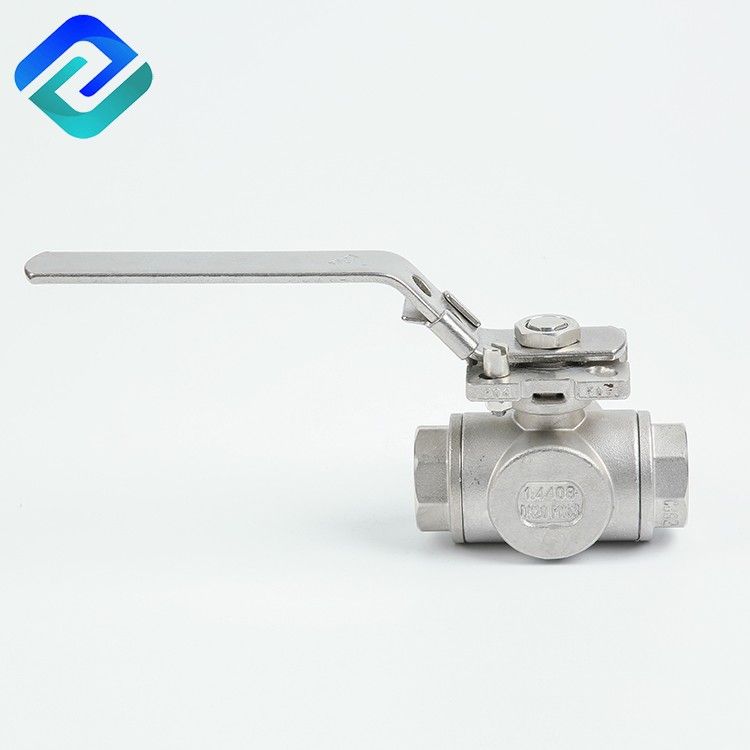

Stainless Steel 3-Way Ball Valve
A 3-way ball valve can be set up to allow different flow patterns, which gives it versatility in a wide range of applications. The two main types of flow patterns are:
A T-port 3-way ball valve has a bore shaped like the letter “T.” This design allows for more complex flow patterns, such as combining or diverting flow from one inlet to two outlets or vice versa. It can also enable the mixing of two media before sending it through a single outlet.
An L-port 3-way ball valve has a bore shaped like the letter “L.” This type of valve is used to divert flow from one inlet to one of two outlets. The L-port allows for switching the direction of the flow between two different paths, making it useful for applications where alternating flow between two outlets is required.
The functionality of a 3-way ball valve is based on the rotation of the ball within the valve body. Depending on how the ball is positioned, the flow of the fluid is either directed, diverted, or stopped entirely. Here’s how the valve works:
In diverting applications, fluid enters through one port (often labeled C) and is directed to one of the two outlet ports (A or B). For example, when the ball is rotated to align the bore with ports C and A, fluid flows from C to A. When rotated the opposite way, the bore aligns with ports C and B, directing flow from C to B.

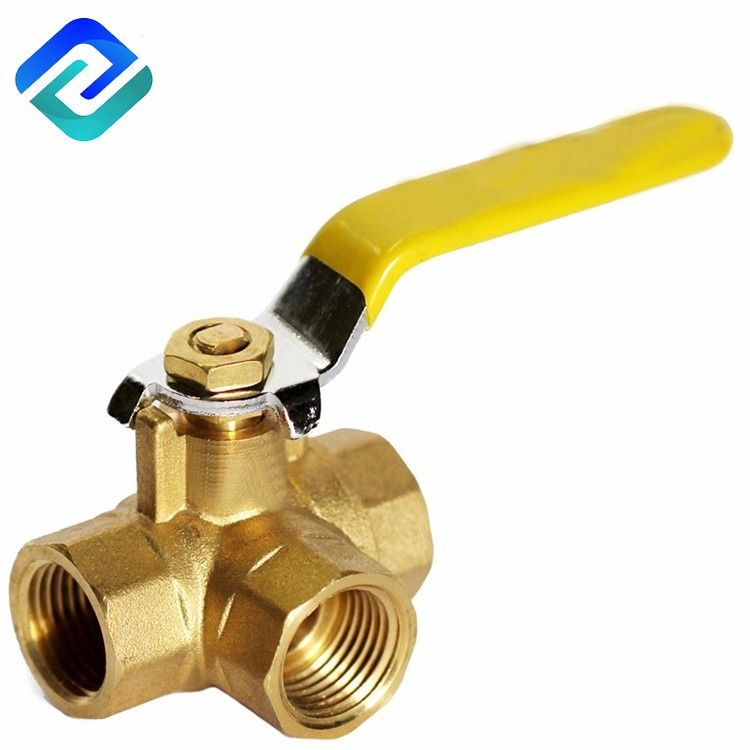

Q14F /Q15F Brass 3-WAY T Ball Valve
In mixing applications, two inlets (A and B) can be combined to flow through a single outlet (C). This is often used in applications that require two media to be mixed before use. For example, a T-port valve can be used to mix hot and cold water before it reaches the desired outlet.
In some cases, the ball valve can be positioned so that none of the ports are connected, effectively stopping the flow of fluid. This makes the 3-way ball valve a useful tool for isolating sections of a system when maintenance or repairs are required.
3-way ball valves are used in various industries for fluid control, and their applications include:
HVAC Systems – Used to mix hot and cold water for temperature control in heating and cooling systems.
Water Distribution – Used to divert water flow to different locations or appliances in a plumbing system.
Chemical Processing – Used to direct or mix chemicals in a controlled environment.
Oil and Gas – Used to switch between different fluid streams in refineries or pipelines.
Food and Beverage Industry – Used to control flow in production lines that handle different liquids and mixtures.
Q: What’s the difference between a 2-way and a 3-way ball valve?
A: A 2-way ball valve has two ports and controls the flow of fluid between an inlet and an outlet. A 3-way ball valve has three ports, allowing for more complex flow patterns such as mixing, diverting, or directing fluid between multiple inlets and outlets.
Q: How do I know if I need a T-port or an L-port 3-way ball valve?
A: A T-port valve is ideal for applications where mixing or more complex flow patterns are needed, while an L-port valve is better suited for applications that require flow to be diverted between two paths.
Q: Can a 3-way ball valve be used for both gas and liquid applications?
A: Yes, 3-way ball valves can be used for both gas and liquid applications, but it's important to choose the right materials and design based on the type of media being controlled.
In conclusion, a 3-way ball valve provides a versatile solution for controlling fluid flow in various industries. Whether you need to divert, mix, or shut off flow, understanding the mechanics of how the valve works helps ensure you select the right one for your application.
