Manufacturing custom gears requires a detailed understanding of gear design, material selection, machining processes, and quality control to ensure that the final product meets the specific requirements for its intended application. Below is an overview of the steps involved in manufacturing custom gears:
The first step in manufacturing custom gears is designing them. This involves determining the gear's specifications, including:
Gear type: Spur gears, helical gears, bevel gears, worm gears, etc.
Gear ratio: The ratio of input to output gears that determines the mechanical advantage and speed reduction.
Pitch: The distance between teeth (measured in diametral pitch or module).
Material: The material chosen depends on factors like load, speed, operating conditions, and cost. Common materials include steel, aluminum, brass, and plastic.
Tooth profile: The shape of the gear teeth, which can be straight, helical, or spiral, among others.
Size and dimensions: Including outer diameter, bore diameter, number of teeth, pressure angle, and face width.
Using specialized CAD (Computer-Aided Design) software such as SolidWorks or AutoCAD, engineers can create a 3D model of the gear and simulate its function to ensure that it meets performance requirements.
Choosing the right material is crucial for the gear’s performance and durability. Common gear materials include:
Steel: Often used for heavy-duty gears due to its strength and wear resistance.
Cast iron: Suitable for gears that are not under extreme stress.
Aluminum: Lightweight and corrosion-resistant, used for lower-load applications.
Brass and bronze: Often used in gears for quieter operation and low friction.
Plastic: Used in less demanding applications, often for noise reduction and lightweight requirements.
The material should be selected based on the load, speed, environment (corrosion resistance, temperature), and the need for lubrication.
There are several methods to manufacture gears, and the best process depends on the complexity, size, and material of the gears:
CNC Gear Cutting: CNC machines with gear-cutting capabilities can create gears with high precision. This method uses a rotating cutting tool to shape the teeth into the material. CNC milling is a versatile option for producing both simple and complex gear designs.
Hobbing: For mass production of gears, hobbing is the most common method. A hob (a specialized rotating cutting tool) is used to cut the gear teeth incrementally. This is effective for manufacturing spur gears, helical gears, and splines.
Shaping: In shaping, a reciprocating cutter is used to remove material from the gear blank. This process is often used for smaller gears with straight teeth.
Broaching: This process involves using a broach tool to cut gear teeth, often used for internal gears.
Forging: This is used for creating high-strength gears, especially in large quantities. The process involves heating the material and shaping it by hammering or pressing it into the desired shape.
Casting: For gears that require a more complex shape, casting is an option. The gear is poured into a mold to form its shape. This method is typically used for large gears in industries such as automotive and aerospace.
After the gears are cut to shape, they often undergo heat treatment to improve their strength, wear resistance, and durability. Common methods include:
Case Hardening: Involves hardening the outer surface of the gear while keeping the inner material softer. This increases wear resistance.
Induction Hardening: Uses a localized electromagnetic field to heat and harden specific areas of the gear, such as the teeth, while leaving the rest of the gear softer.
Tempering: After hardening, gears are often tempered to reduce brittleness and improve toughness.
Once the gears are rough cut, they may need to be ground to achieve a high degree of precision. Gear grinding is especially important for gears that need to operate with minimal noise and smooth engagement, such as in high-speed or high-precision applications.
Gear Grinding: This is used for refining the tooth profile, correcting errors, and achieving the final dimensions and surface finish.
Polishing: For gears that require low friction, such as in high-performance machinery, polishing may be necessary to achieve a smooth surface finish.
In some cases, gears are part of a larger assembly. If the custom gears are designed to fit into a gear system, it’s essential to verify that they mesh correctly with other components like shafts, bearings, or other gears. The assembly process may involve:
Press-fitting the gears onto shafts
Installing bearings or lubrication systems
Testing gear alignment and mesh
Quality control is critical to ensuring that the custom gears meet the required standards. The following tests may be conducted:
Dimensional inspection: To check the gear's dimensions, including tooth spacing, pressure angle, and diameter.
Tooth profile inspection: To verify the accuracy of the tooth shape and ensure smooth operation.
Hardness testing: To ensure the gear meets the required hardness levels.
Load testing: To evaluate the gear’s performance under operational conditions.
Noise and vibration testing: Especially important for gears used in precision or high-speed applications.
Once the custom gears have passed quality control, they are packaged according to customer requirements, typically with protective coatings to prevent rust and damage during shipping. Custom gears are often shipped with documentation, such as material certificates, performance data, and maintenance instructions.

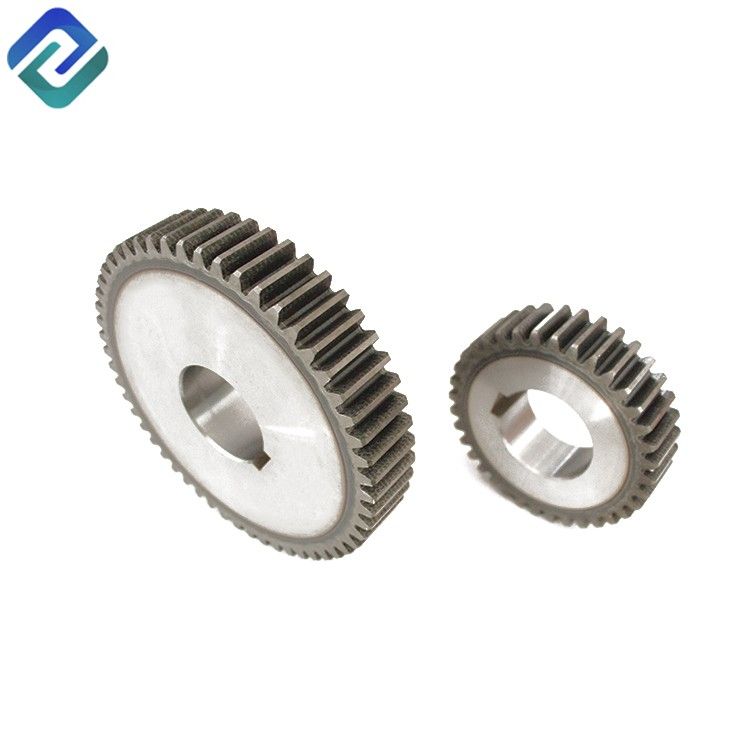

Spur Gears: The most basic and commonly used type of gear. The teeth are straight and parallel to the gear's axis.
Helical Gears: These gears have teeth set at an angle, offering smoother and quieter operation than spur gears.
Bevel Gears: Used to change the direction of motion, typically at a 90-degree angle.
Worm Gears: A type of gear where a gear (the worm) meshes with a worm wheel, used to achieve a high reduction ratio.
Rack and Pinion: A linear gear system used to convert rotational motion into linear motion.
Manufacturing custom gears involves a series of steps, including design, material selection, machining, heat treatment, and quality control. The choice of manufacturing process largely depends on the complexity and size of the gear, as well as the specific application. By following these steps and paying close attention to detail, manufacturers can produce high-quality, custom gears that meet their customers' unique specifications and performance requirements.
