Cencho Group has designed this website dedicated to supplying quality stainless ball valves at wholesale prices. We have customers in the United States, Mexico, Canada, Italy, Australia, Korea, Paraguay and The philippines in different markets such as chemical, agricultural, construction, pharmaceutical, and the food and beverage industries. Our primary focus is 1-piece, 2-piece and 3-piece SS ball valves, however we also supply various mini ball valve, check valve, gate valve, butterfly valve, needle valve and tri-clamp valves and can manufacture flanged ends and butt weld ends on request. Our ball valves are manufactured high grade 316 stainless steel. However, we do offer some variations in SS 304 for better pricing. Two piece stainless steel valves are quickly becoming the most widely used threaded ball valve, replacing traditional brass ball valves due to their cost and durability. Resellers please call for special pricing.

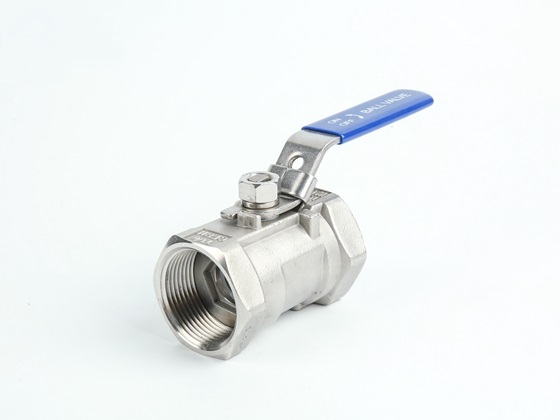

The 1- Piece Ball valve is made out of one body piece unlike the 2 and 3 piece. This means the valve cannot be taken apart for cleaning. The advantage is that the valve will be low cost and robust. As a result of the valve body being one piece is that a smaller ball has to be used leading to a reduced port, more commonly called a reduced bore. This means that flow is reduced through the valve, since the ball bore is one size smaller than the pipe size.
Threaded Ports FNPT by FNPT for standard Pipe Connection
Reduced/Standard Port Ball Valve
Stem is Blow Out Proof
Pressure Rating 1000 PSI, Suitable for Standard Uses
PTFE Seat and Seal, suitable for High Heat and Chemical Applications
Sizes Start from 1/2" up to 2"

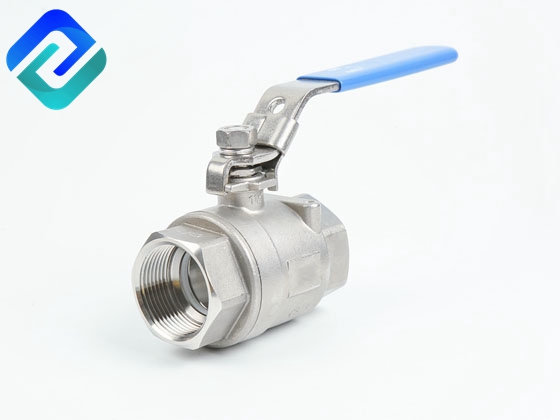

The 2-piece stainless steel ball valve is probably the most widely used ball valve. The 2 piece ball valve will open or shut off flow on most liquids and gases quickly and easily and is suitable for just about any application where a simple on/off action is needed. Flow rate can also be controlled by partially opening or closing the valve to various degrees. Also referred to as a two-way ball valve, since it allows flow in any direction straight through from inlet to outlet. Being threaded ball valves they are quick to install and easy to use, requiring no tooling for installation. The two piece ball valve is the best priced full port ball valve (full bore), allowing the inside diameter of the pipe to remain constant and unrestricted. This means that the 2 piece SS ball valve has no pressure drop and keeps the flow rate high.
Threaded Ports Female NPT by Female NPT for Easy Connection
Full Port Ball Valve, maximum ID also called Full Bore
Lockable Handle Lever with Blow Out Proof Stem
Pressure Rating up to 1000 PSI Suitable for Most Standard Uses
PTFE Seal and Seat Good for Chemical and High Heat Applications
Sizes Start from 1/4" up to 4"

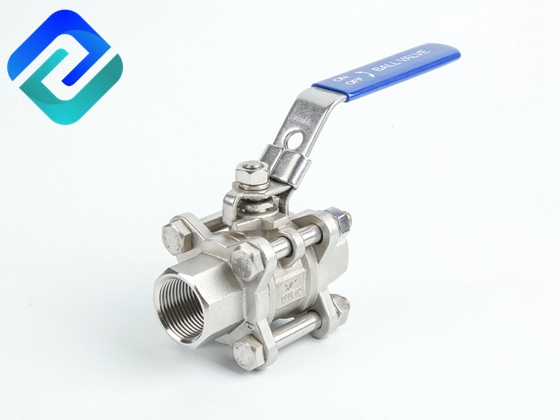

A 3-piece ball valve is preferred wherever regular cleaning is required. The valve body is composed of 3 separate pieces held together by bolts, which can be easily removed for cleaning and servicing. A unique advantage of the 3 piece valve design is that the ball valve ends can remain threaded into the pipe, while the center section containing the ball can be removed. These 3 piece ball valves have been specifically designed to be easily disassembled, cleaned, and reassembled. 3 piece stainless Steel ball valves also called 3 SS ball valves, are widely used for a variety of sanitary applications that are required for pharmaceutical and food/beverage industries.
Threaded Ports Female by Female NPT for Standard Connection
Full Port Valve
Standard with Blow Out Proof Stem
Pressure Rated to 1000 PSI Suitable for Standard Applications
PTFE Seals and Seats Making these Heat and Chemical Resistant
Sizes available in 1/4" to 4"
