Stainless steel pipe fittings are essential components in various industries due to their durability, resistance to corrosion, and strength. This guide addresses frequently asked questions about stainless steel pipe fittings to provide a comprehensive understanding of their applications, types, and benefits.
Stainless steel pipe fittings are components used to connect, control, and change the direction of stainless steel piping systems. They are made from stainless steel, an alloy of iron, chromium, and other elements that enhance its resistance to corrosion and high temperatures.
Elbows: Used to change the direction of the piping system, typically available in 45°, 90°, and 180° angles.

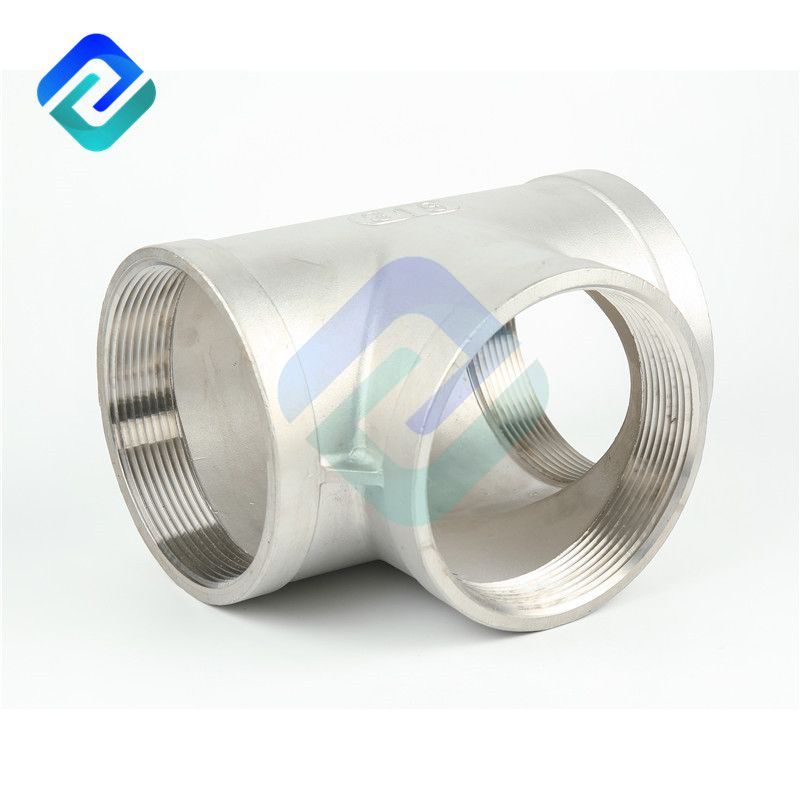

Tees: T-shaped fittings that allow for branching of the pipeline.
Reducers: Used to connect pipes of different diameters.
Couplings: Connect two pipes together.
Caps: Close the ends of the pipes.
Unions: Allow easy disconnection and reconnection of pipes.
Crosses: Four-way fittings used to connect four pipes.
Adapters: Used to connect pipes to different types of fittings or systems.

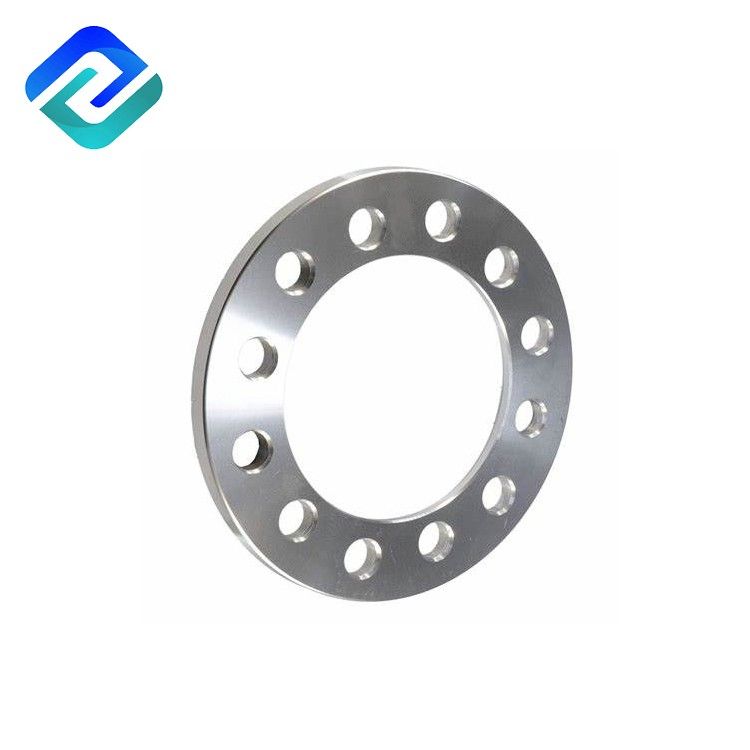

Flanges: Flat, round components used to connect pipes to each other or to valves and other equipment.
Corrosion Resistance: Stainless steel is highly resistant to corrosion, making it suitable for use in harsh environments.
Strength and Durability: Stainless steel fittings are strong and durable, withstanding high pressures and temperatures.
Hygienic: Stainless steel's smooth surface prevents the accumulation of contaminants, making it ideal for food and pharmaceutical industries.
Aesthetic Appeal: Stainless steel has a clean, modern appearance suitable for exposed installations.
Recyclability: Stainless steel is 100% recyclable, contributing to sustainable practices.
304 Stainless Steel: Commonly used due to its excellent corrosion resistance and affordability.
316 Stainless Steel: Contains molybdenum, which enhances its corrosion resistance, especially against chlorides and other industrial solvents. Ideal for marine and chemical environments.
Other Grades: Specialty grades like 321 and 347 are used for high-temperature applications.
Food and Beverage Industry: Due to their hygienic properties.
Pharmaceutical Industry: Ensures contamination-free processes.
Chemical and Petrochemical Industries: Resistant to corrosive chemicals.
Oil and Gas Industry: Handles high pressure and harsh conditions.
Water Treatment Plants: Resists corrosion and maintains water quality.
HVAC Systems: Used in heating, ventilation, and air conditioning for durability.
Casting: Molten stainless steel is poured into a mold and allowed to solidify.
Forging: Stainless steel is heated and shaped using compressive forces.
Machining: Fittings are cut and shaped using machines for precise dimensions.
Welding: Pieces are joined together using high heat to form a solid, continuous fitting.
Material Grade: Choose the appropriate grade based on the application and environment.
Size: Ensure fittings match the pipe diameter and wall thickness.
Pressure Rating: Check the fitting’s pressure rating to ensure it can withstand system pressures.
Temperature Rating: Ensure the fitting can handle the operating temperature of the system.
End Connections: Match the fitting’s end connection type (threaded, welded, flanged) with the piping system.
ASTM Standards: Various standards specify material and dimensional requirements (e.g., ASTM A403 for wrought stainless steel fittings).
ASME Standards: Define pressure-temperature ratings, dimensions, and materials (e.g., ASME B16.9 for factory-made wrought steel butt-welding fittings).
ISO Standards: International standards for quality and safety (e.g., ISO 9001 for quality management).
Regular Inspection: Check for signs of wear, corrosion, or leaks.
Cleaning: Use appropriate cleaning agents to remove dirt and contaminants.
Protection: Apply protective coatings in highly corrosive environments.
Replacement: Replace fittings that show significant signs of damage or wear.
Stainless steel pipe fittings are crucial in various industries due to their strength, durability, and resistance to corrosion. Understanding the types, benefits, applications, and maintenance of these fittings ensures their optimal use and longevity in piping systems. Selecting the right fittings and maintaining them properly will contribute to the efficiency and reliability of your installations.
