In industrial and residential applications, the 3 way valve plays a crucial role in controlling the flow of fluids. Whether you’re working in HVAC systems, water treatment plants, or manufacturing, understanding how a 3 way valve functions can significantly impact your system's efficiency and reliability. This ultimate guide will provide you with an in-depth look at what 3 way valves are, their types, applications, and how to choose the right one for your needs.
A 3 way valve is a type of valve with three ports, used to control the flow and direction of fluids within a system. These valves are designed to either mix or divert fluid flow, making them versatile for various applications. The three ports can be arranged in different configurations, such as an L-port or T-port, depending on the specific needs of the system.
The primary function of a 3 way valve is to regulate the flow between two different pathways. For example, in a heating system, a 3 way valve can be used to either mix hot and cold water or divert water flow between two separate loops.

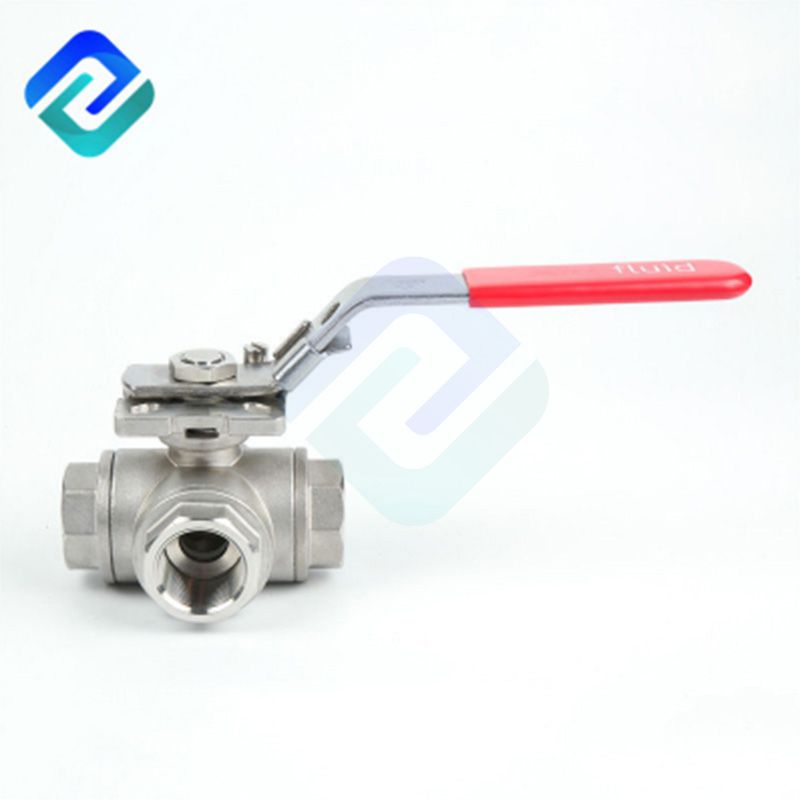

Stainless Steel 304 / 316 1000 Psi 3 Way Ball Valve
There are several types of 3 way valves, each designed for specific functions and applications. The two most common types are:
1. Mixing Valves: These valves combine fluids from two inlets into one outlet. They are commonly used in heating systems where hot and cold water are mixed to achieve the desired temperature.
2. Diverting Valves: These valves take a single inlet flow and direct it to one of two outlets. Diverting valves are often used in systems where fluid needs to be directed to different parts of the system based on operational needs.
Additional types include:
3. L-Port Valves: The L-shaped configuration allows for fluid diversion between two pathways, commonly used in applications requiring switching between two output paths.
4. T-Port Valves: The T-shaped configuration enables mixing or diverting functions within the system, providing more versatility in complex applications.
3 way valves are used across a broad range of industries due to their versatility. Some common applications include:
1. HVAC Systems: 3 way valves are widely used in heating, ventilation, and air conditioning systems to control the mixing or diversion of hot and cold water, ensuring optimal temperature regulation.
2. Water Treatment Plants: These valves help in directing the flow of water or chemicals in water treatment processes, ensuring that the right amounts of fluids are combined or separated at the appropriate times.
3. Chemical Processing: In chemical plants, 3 way valves manage the flow of various chemicals through different processing stages, ensuring accurate mixing and flow control.
4. Manufacturing: These valves are integral in controlling the flow of lubricants, coolants, and other fluids in manufacturing processes, ensuring machinery operates efficiently and safely.
Selecting the right 3 way valve depends on several factors, including the application, the type of fluid, pressure, and temperature requirements. Here’s a guide to help you choose the right valve:
1. Determine the Function: Identify whether you need the valve to mix or divert fluids. This will help you choose between a mixing or diverting valve and whether an L-port or T-port configuration is required.
2. Consider the Material: The valve’s material should be compatible with the fluid it will control. Common materials include brass, stainless steel, and PVC, each suitable for different types of fluids and environmental conditions.
3. Pressure and Temperature Ratings: Ensure the valve can withstand the pressure and temperature ranges in your system. Using a valve with inadequate ratings can lead to system failures or safety hazards.
4. Flow Rate Requirements: The valve’s size should match the required flow rate in your system to ensure efficient operation without causing pressure drops or flow restrictions.
Q: Can a 3 way valve be used for both mixing and diverting?
A: Yes, some 3 way valves, particularly those with a T-port configuration, can be used for both mixing and diverting functions, offering greater flexibility in various applications.
Q: What are the signs that a 3 way valve needs replacement?
A: Signs include leaking, difficulty in operation, or failing to properly regulate the flow as intended. Regular maintenance can help identify when a valve needs replacement.
Q: How often should a 3 way valve be maintained?
A: Maintenance frequency depends on the application and operating conditions, but generally, regular inspections and lubrication can prolong the valve's lifespan and ensure reliable performance.
3 way valves are essential components in many systems, providing critical control over fluid flow in a variety of applications. By understanding the different types, functions, and factors to consider when selecting a 3 way valve, you can ensure optimal performance and efficiency in your system. Whether you’re dealing with HVAC, water treatment, or manufacturing, choosing the right valve is key to achieving the desired results and maintaining system integrity.
