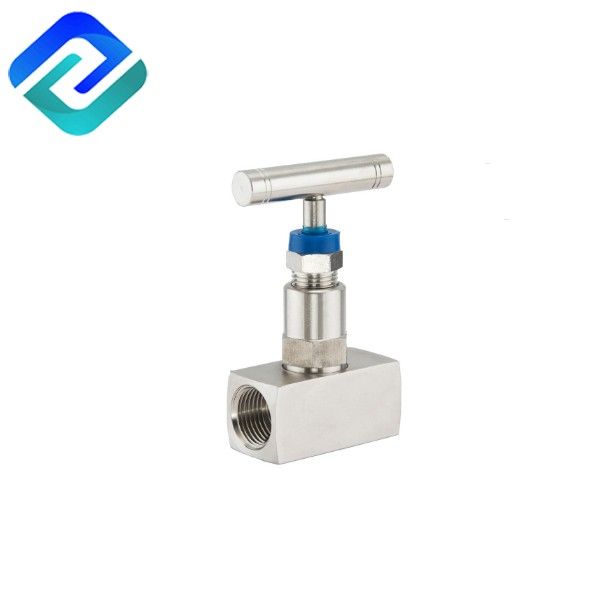

316/316L high pressure stainless steel female needle valve
◆ A dust-proof cap is supplied on the top of the stuffing box gland which can protect the stem thread from the outside impurities.
◆ The stuffing filling is under the thread to effectively protect the lubricating grease from being brushed away.
◆ The core and the stem is of lapped joint with the functions of up sealing.
◆ Vertical hard sealing is used between the core and the body, also between the seat and the body.
◆ Non-rotational ball-shaped stem head and adjustable stem head can be supplied.
◆ Operating pressure can be up to 6000 psi (413bar).
◆ Operating temperature: -53 to 232℃（-65 to 450 F）for PTFE sealing. -53 to 649℃（-65 to 1200 F ）for graphite sealing.

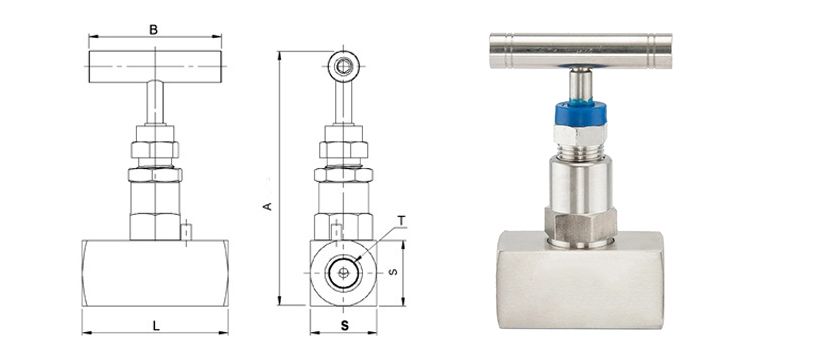

Dimension Table
| T | L | S | A | B |
| 1/4" | 55 | 25 | 96 | 50 |
| 3/8" | 55 | 25 | 96 | 50 |
| 1/2" | 65 | 30 | 103 | 50 |
| 3/4" | 70 | 38 | 109 | 50 |
| 1" | 80 | 45 | 128 | 60 |
Q1: Can I have a sample order?
A: Definitely Yes. We welcome sample order to test and check quality.Mixed samples are acceptable.
Q2: Do you have any MOQ limit for valve order?
A: One pcs for sample checking is available. For stocks, ow MOQ is available.
Q3: Can you do the design for us?
A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We
will send you finished files for confirmation.
Q4: How to proceed an order?
A: Stepl Let us know your requirements or application.
Step2 We quote according to your requirements or our suggestions.
Step3 Customer confirms the samples and places deposit for formal order.
Step4 We arrange the production.
Q5: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
Q6: What's the package and how do you ship the goods?
A: Products are usually packed in cartons and transported by logistics.
