Stainless Steel lost wax casting Pipe Fitting 90 degree elbow crutches

FEATURES

◆The thread end conform to

ASME B1.20.KNPT

DIN 2999&BS21

ISO 228/1 & ISO 7/1

◆Dimension conform to

ISO 4144fSP114

EN-10241JIS

◆150LBS

◆Material conform to

ASTM A351-CF8M/1.4408

ASTM A351-CF8/1.4401

ASTM A216-WCB

AISI 304,304L,316,316L,301,430ETC

Inquire Now Next Product

Products Description

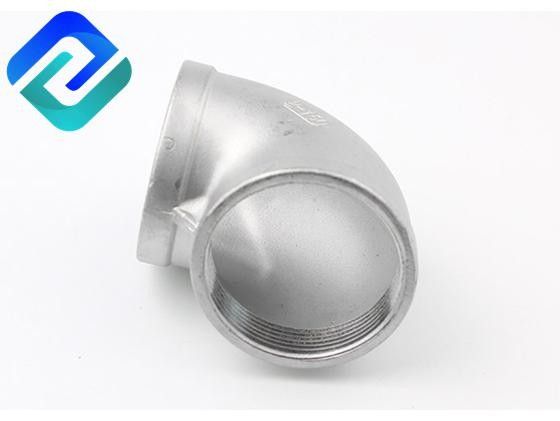

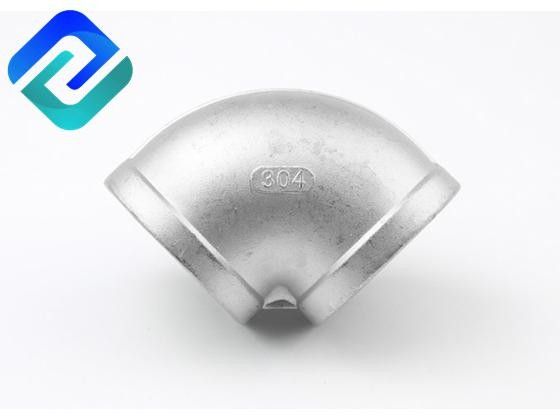

Stainless Steel lost wax casting Pipe Fitting 90 degree elbow crutches

◆90 Degree Elbows Female Thread

◆Item No.: LT - 01A

◆Material:ASTM A351 CF8(304), ASTM A351 CF8M(316)

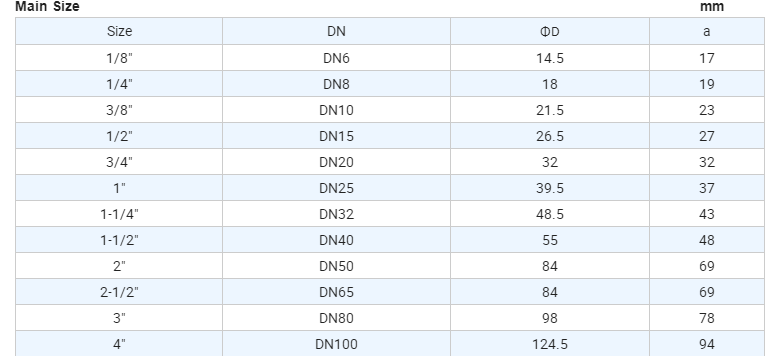

◆Size:1/8" to 4"

◆Thread Type:BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc.

◆Pressure rates: 150#

◆For Use with Air, Natural Gas, Oil, Steam, Water.

◆Fabrication: Silica Sol Precision Casting Technology.

◆Certificate: ISO 9001:2015, ISO14001:2015, CE, KC, RoHS.

◆Pipe fittings meet applicable chemical & mechanical properties.

◆Material Test Report is available upon request when placing order.

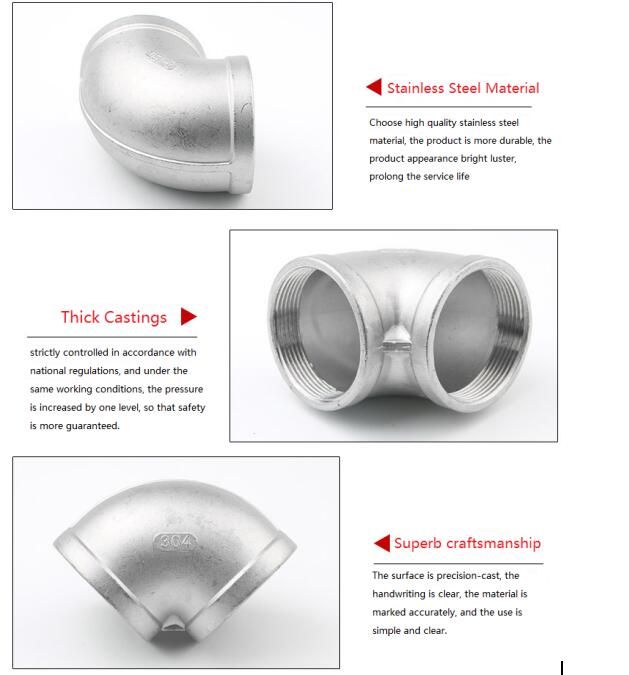

Stainless Steel lost wax casting Pipe Fitting elbow crutches

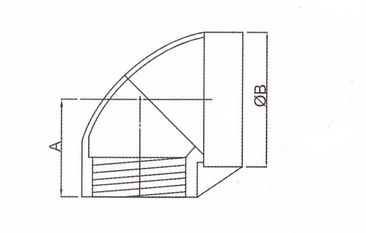

Drawings
