The valve strainer is a device used in various fluid handling systems to filter out unwanted particles and debris from the fluid flow before it enters a valve or another component of the system. It helps protect downstream equipment, such as pumps, valves, and meters, from damage or malfunction caused by contaminants.

Mesh Screen or Perforated Plate: The core component of a valve strainer is typically a mesh screen or perforated plate that captures particles while allowing the fluid to pass through. The size of the openings (mesh size) determines the size of particles that the strainer can capture.

Body: The strainer's body is usually made of materials like stainless steel, brass, or other corrosion-resistant metals, designed to withstand the pressure and temperature of the fluid system.

Drain Plug: Some strainers have a drain plug at the bottom, which allows for the removal of collected debris without having to dismantle the strainer.

Types of Valve Strainers

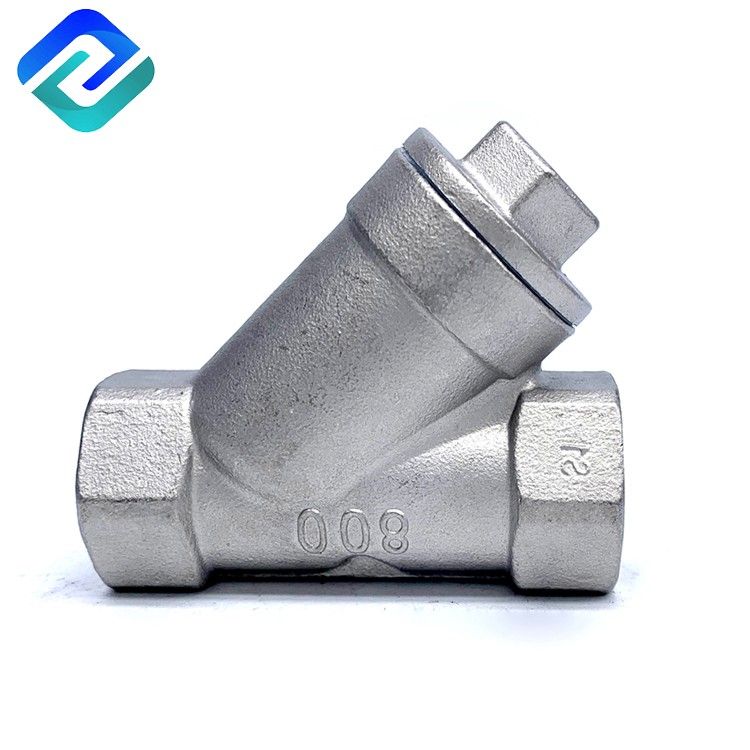

Y-Strainers: Named for their Y-shape, these are commonly used in pipelines to remove foreign matter from the flow. They can be installed horizontally or vertically, depending on the application.

T-Strainers: T-strainers are more robust and often used in high-pressure systems where the fluid flow needs to be maintained without interruption.

Basket Strainers: These have a basket-like screen that is easy to remove and clean. They are generally used in systems where larger volumes of debris are expected.

Application

Water Treatment: To remove sand, dirt, and other particulates from water before it enters sensitive equipment.

Oil & Gas Industry: To filter impurities from crude oil or natural gas to protect downstream equipment.

HVAC Systems: To prevent debris from entering and damaging heating, ventilation, and air conditioning equipment.

Chemical Processing: To ensure that only clean fluids pass through sensitive processes and equipment.
